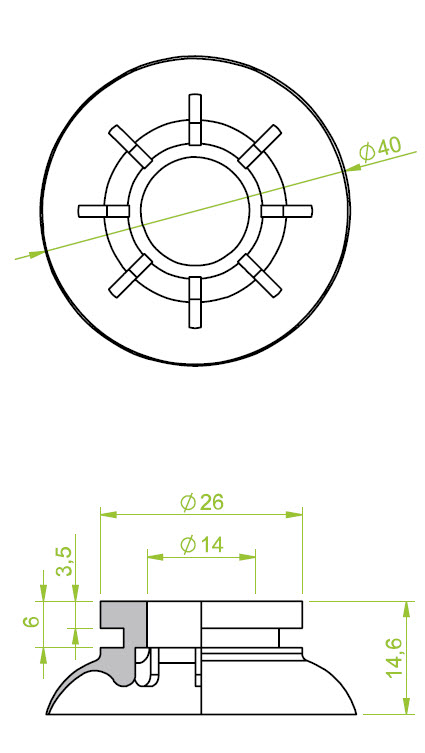

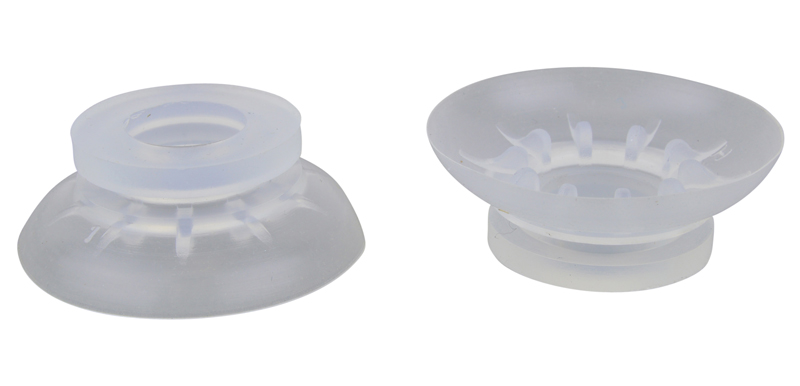

Home > Products > Suction Cups > 10.040.125.02-40 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10.040.125.02-40 - 40mm flat FDA Silicone suction cup with cleats Item#: 10.040.125.02-40 Price: $10.01 ea. 40mm flat FDA Silicone suction cup with cleats General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 40.0mm Weight(lbs): .0077 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10.040.125.02-40    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 2.33 lbs. 1.16 lbs. 18"Hg 7.01 lbs. 3.50 lbs. 27"Hg 10.51 lbs. 5.25 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: KPS-9-S Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10.040.125.02-40 No CAD files available for this Product Dimensional drawing for Item: 10.040.125.02-40                                Click on the image to enlarge Parts and accessories for Suction Cup: 10.040.125.02-40                                No parts or accessories related to this item were found.
