Item: 35B.030.001.02MD-G14FS - 30mm 3.5 bellows FDA Silicone metal detectable su... (Full Description below)
| |
Item#: 35B.030.001.02MD-G14FS
Price: $18.43 ea.
|

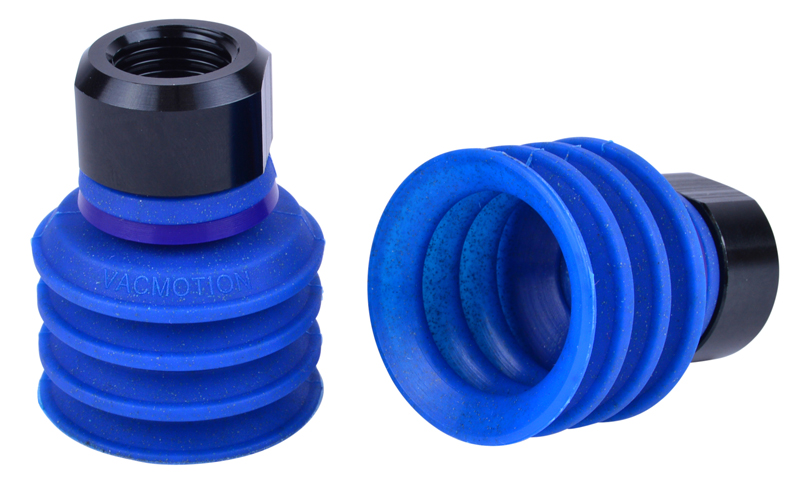

30mm 3.5 bellows FDA Silicone metal detectable suction cup with G 1/4 fitting with screen
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: 1/4" female
Bellows: 3.5
Outside Diameter: 30.0mm
Weight(lbs): .0285
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 35B.030.001.02MD-G14FS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.31 lbs. |
0.65 lbs. |
| 18"Hg |
3.94 lbs. |
1.97 lbs. |
| 27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: 35B.030.001.02MD-G14FS
