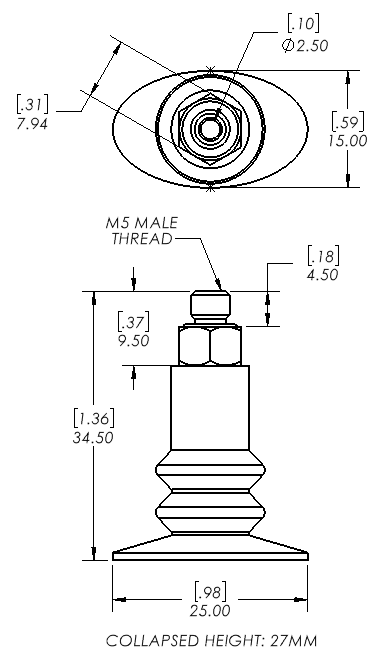

Home > Products > Suction Cups > VOCB25X15-SIT-M5 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VOCB25X15-SIT-M5 - 15mm x 25mm FDA Silicone oval bellows suction cup... (Full Description below) Item#: VOCB25X15-SIT-M5 Price: $16.16 ea. 15mm x 25mm FDA Silicone oval bellows suction cup with M5 male fitting. General Specifications Style: Oval Cleats: No Material: Silicone Thread Size: M5 male Outside Diameter1: 25.0mm Outside Diameter2: 15mm Weight(lbs): .0139 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item VOCB25X15-SIT-M5    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.36 lbs. 0.18 lbs. 18"Hg 1.64 lbs. 0.82 lbs. 27"Hg 2.46 lbs. 1.23 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action Click Video for Product: VOCB25X15-SIT-M5 Related CAD files of Product Dimensional drawing for Item: VOCB25X15-SIT-M5                                Click on the image to enlarge Parts and accessories for Suction Cup: VOCB25X15-SIT-M5                                Fitting Image for 130.013C Item#: 130.013C compatible with cup #VOCB25X15-SIT-M5 General Specifications Material: Nickel Plated Brass Weight: .0080(lbs) Dimensions: M5 male Description: M5 male barb suction cup fitting *This fitting is included with the cup(VOCB25X15-SIT-M5) Dimensional Fitting Drawing for 130.013C
