Quantity:

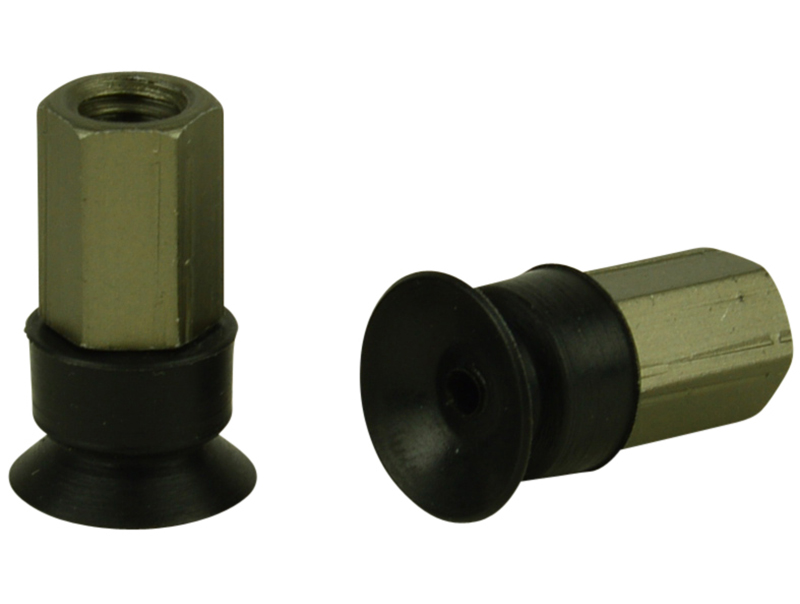

Item: PA10-NBR-M5F - 11mm flat suction cup with M5 female fitting, NBR
| |
Item#: PA10-NBR-M5F
Price: $6.60 ea.
|
11mm flat suction cup with M5 female fitting, NBR
General Specifications
Style: Flat
Cleats: No
Material: NBR
Thread Size: M5 female
Outside Diameter: 11.0mm
Weight(lbs): .0042
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PA10-NBR-M5F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.17 lbs. |
0.08 lbs. |
| 18"Hg |
0.53 lbs. |
0.26 lbs. |
| 27"Hg |
0.79 lbs. |
0.39 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: PFTF-10A-NBR-M5, PFYN 10 NBR-55 M5-IG, 10.01.01.00084 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action  No Videos available for: PA10-NBR-M5F Related CAD files of Product

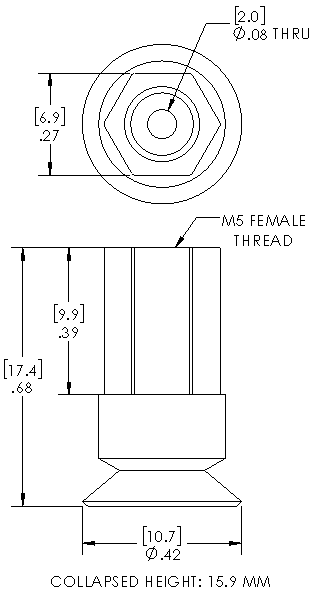

Dimensional drawing for Item: PA10-NBR-M5F
Click on the image to enlarge
Parts and accessories for Suction Cup: PA10-NBR-M5F
Fitting Image for 130.005 |
General Specifications
Material: Aluminum
Weight: .0015(lbs)
Dimensions: M5 female
Description: M5 female fitting for PFG, PJG 5-15mm cups
*This fitting is included with the cup(PA10-NBR-M5F)
|
Dimensional Fitting Drawing for 130.005 |
|
|---|
|
