Item: 012030S - 20mm 2.5 bellows silicone suction cup for bag han... (Full Description below)
| |
Item#: 012030S
Price: $14.11 ea.
|

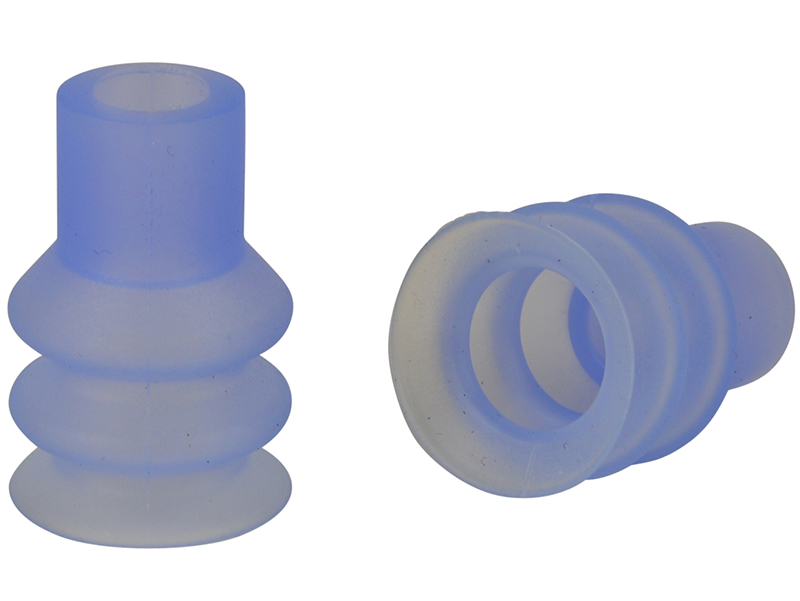

20mm 2.5 bellows silicone suction cup for bag handling
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: None
Bellows: 2.5
Outside Diameter: 20.0mm
Weight(lbs): .0039
Color: Blue
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 012030S
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.58 lbs. |
0.29 lbs. |
| 18"Hg |
1.75 lbs. |
0.87 lbs. |
| 27"Hg |
2.62 lbs. |
1.31 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: MVS 20 2.5 SIB |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos available for: 012030S

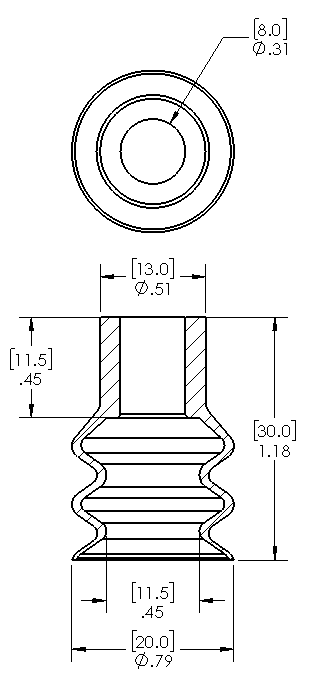

Related CAD files of Product
