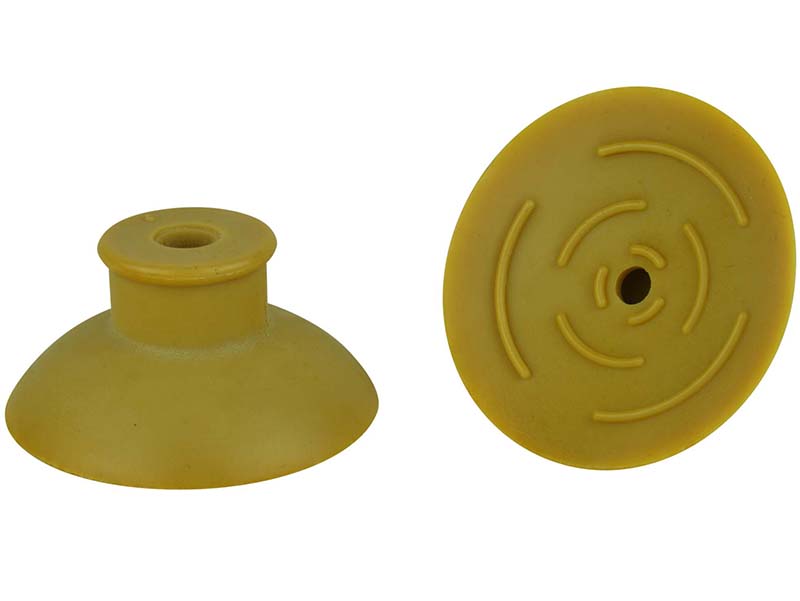

Home > Products > Suction Cups > 10.075.524.03/40 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10.075.524.03/40 - 75mm flat suction cup with cleats, natural rubber... (Full Description below) Item#: 10.075.524.03/40 Price: $22.96 ea. 75mm flat suction cup with cleats, natural rubber 40 shore A General Specifications Style: Flat Cleats: Yes Material: Natural Rubber Thread Size: None Outside Diameter: 75.0mm Weight(lbs): .0925 Color: Yellow Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10.075.524.03/40    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 8.21 lbs. 4.10 lbs. 18"Hg 24.65 lbs. 12.32 lbs. 27"Hg 36.97 lbs. 18.48 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Natural Rubber Good Poor Poor -40 to 176 °F (-40 to 80 °C) Video of Product in Action No Videos available for: 10.075.524.03/40 No CAD files available for this Product Dimensional drawing for Item: 10.075.524.03/40                                Click on the image to enlarge Parts and accessories for Suction Cup: 10.075.524.03/40                                No parts or accessories related to this item were found.
