Item: PSB50-HNBR-G18F - 52mm single bellows suction cup, H-NBR, with G1/8... (Full Description below)
| |
Item#: PSB50-HNBR-G18F
Price: $22.71 ea.
|

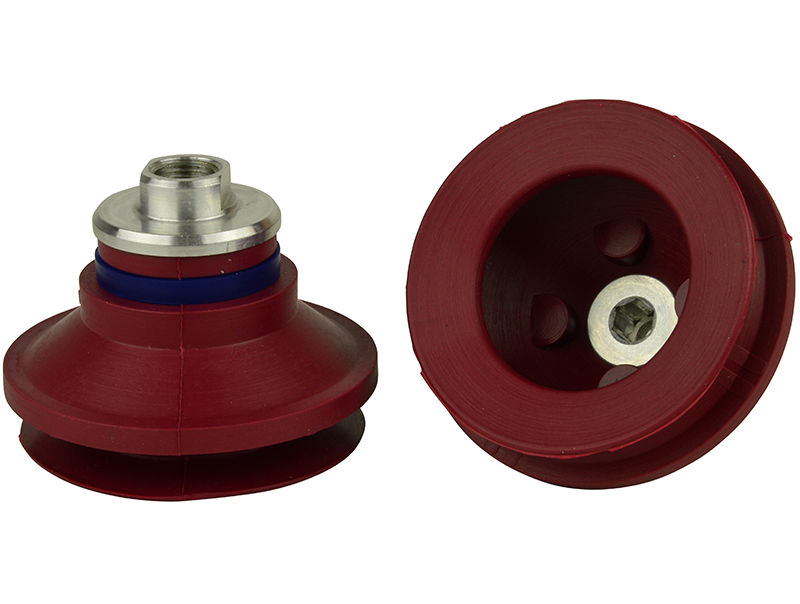

52mm single bellows suction cup, H-NBR, with G1/8 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: HNBR
Thread Size: 1/8" female
Bellows: 1.5

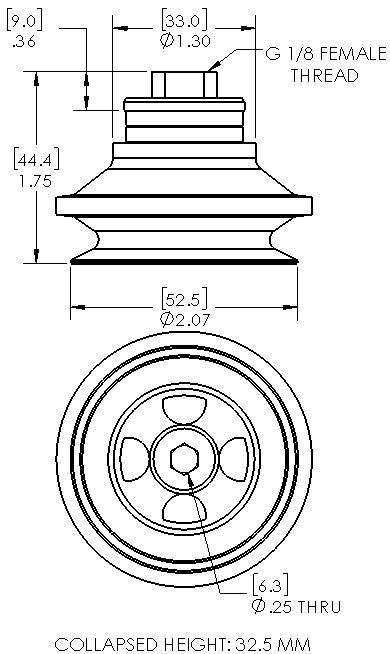

Outside Diameter: 52.0mm
Weight(lbs): .0655
Color: Dark Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB50-HNBR-G18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.95 lbs. |
1.97 lbs. |
| 18"Hg |
11.85 lbs. |
5.92 lbs. |
| 27"Hg |
17.77 lbs. |
8.88 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: 9908740 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| HNBR |
Good |
Excellent |
Good |
-22 to 320 °F (-40 to 160 °C) |
Video of Product in Action
No Videos available for: PSB50-HNBR-G18F
No CAD files available for this Product
