Item: 082540S - 25mm single bellows silicone suction cup with vul... (Full Description below)
| |
Item#: 082540S
Price: $33.50 ea.
|

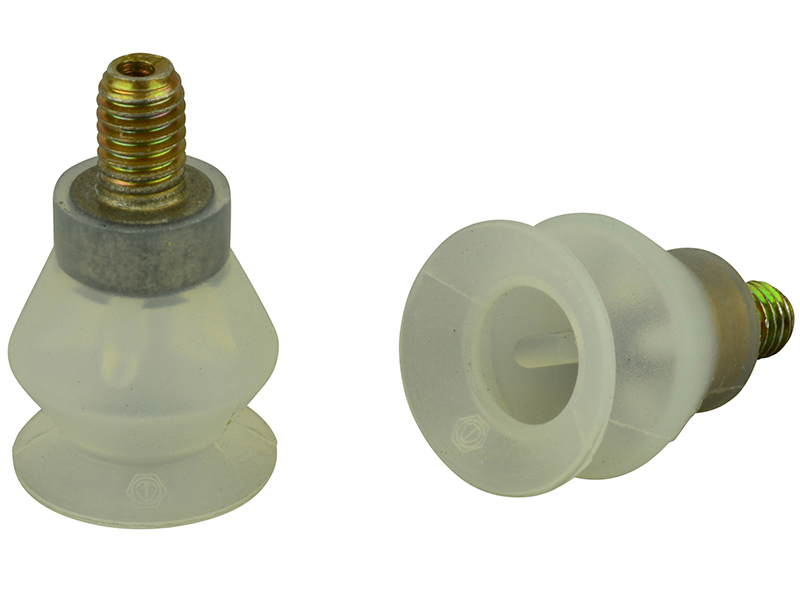

25mm single bellows silicone suction cup with vulcanised M8 male fitting
General Specifications
Style: Bellows
Cleats: No
Material: Silicone
Thread Size: M8 male
Bellows: 1.5
Outside Diameter: 25.0mm
Weight(lbs): .0286
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 082540S
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.91 lbs. |
0.45 lbs. |
| 18"Hg |
2.73 lbs. |
1.36 lbs. |
| 27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: 22.025.029.2, B1.5-25-SIT8M |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos available for: 082540S
No CAD files available for this Product
Dimensional drawing for Item: 082540S
Click on the image to enlarge
Parts and accessories for Suction Cup: 082540S
No parts or accessories related to this item were found.
