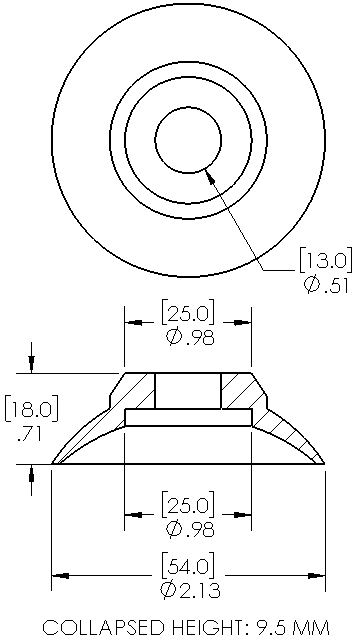

Home > Products > Suction Cups > 015418N Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 015418N - 54mm flat suction cup, natural para rubber Item#: 015418N Price: $15.24 ea. 54mm flat suction cup, natural para rubber General Specifications Style: Flat Cleats: No Material: Natural Rubber Thread Size: None Outside Diameter: 54.0mm Weight(lbs): .0127 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 015418N    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 4.25 lbs. 2.12 lbs. 18"Hg 12.77 lbs. 6.38 lbs. 27"Hg 19.16 lbs. 9.58 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Natural Rubber Excellent Poor Good -94 to 176 °F (-70 to 80 °C) Video of Product in Action No Videos available for: 015418N No CAD files available for this Product Dimensional drawing for Item: 015418N                                Click on the image to enlarge Parts and accessories for Suction Cup: 015418N                                No parts or accessories related to this item were found.
