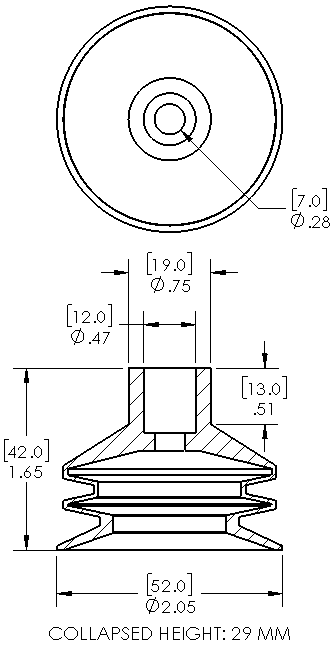

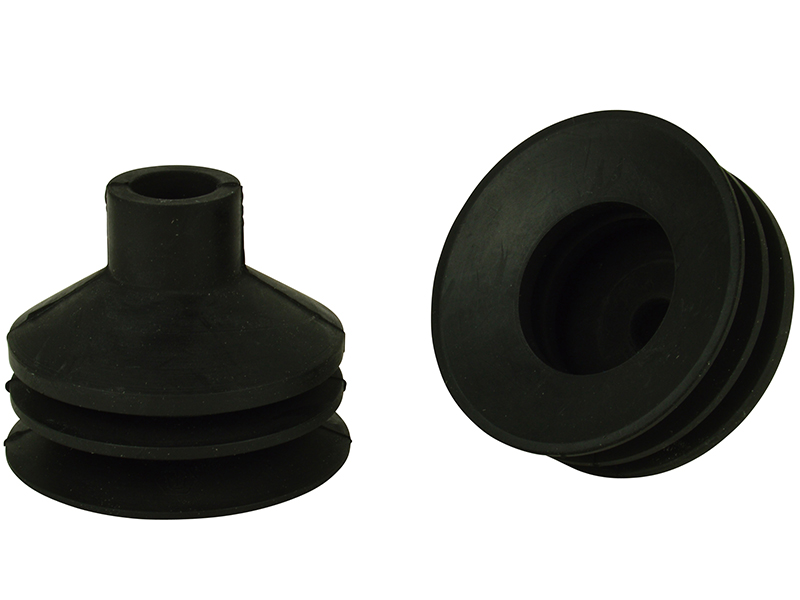

Home > Products > Suction Cups > 015250N Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 015250N - 52mm multiple bellows Natural Rubber suction cup Item#: 015250N Price: $24.48 ea. 52mm multiple bellows Natural Rubber suction cup General Specifications Style: Bellows Cleats: No Material: Natural Rubber Thread Size: None Bellows: 2.5 Outside Diameter: 52.0mm Weight(lbs): .0297 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 015250N    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 3.95 lbs. 1.97 lbs. 18"Hg 11.85 lbs. 5.92 lbs. 27"Hg 17.77 lbs. 8.88 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Natural Rubber Excellent Poor Good -94 to 176 °F (-70 to 80 °C) Video of Product in Action No Videos available for: 015250N No CAD files available for this Product Dimensional drawing for Item: 015250N                                Click on the image to enlarge Parts and accessories for Suction Cup: 015250N                                No parts or accessories related to this item were found.
