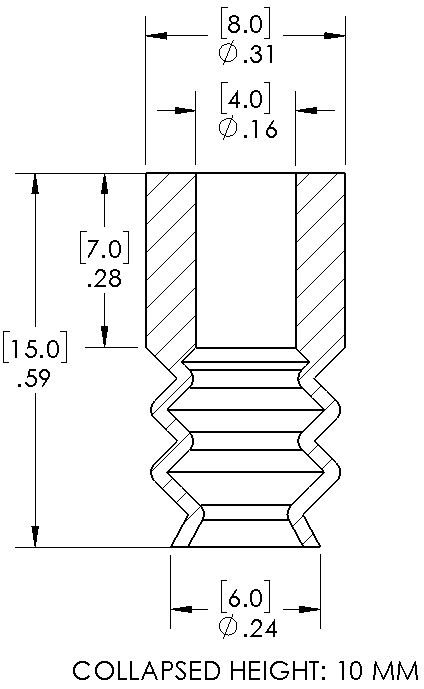

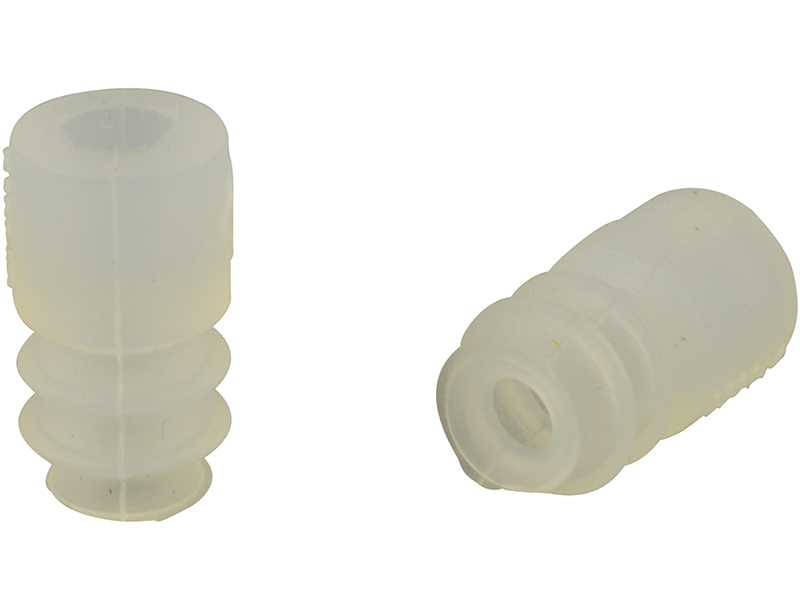

Home > Products > Suction Cups > 010650S Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 010650S - 6mm multiple bellows silicone suction cup Item#: 010650S Price: $8.39 ea. 6mm multiple bellows silicone suction cup General Specifications Style: Bellows Cleats: No Material: Silicone Thread Size: None Bellows: 2.5 Outside Diameter: 6.0mm Weight(lbs): .0002 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 010650S    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.05 lbs. 0.02 lbs. 18"Hg 0.15 lbs. 0.07 lbs. 27"Hg 0.23 lbs. 0.11 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -58 to 572 °F (-50 to 300 °C) Video of Product in Action No Videos available for: 010650S No CAD files available for this Product Dimensional drawing for Item: 010650S                                Click on the image to enlarge Parts and accessories for Suction Cup: 010650S                                No parts or accessories related to this item were found.
