Item: 083515S - 35mm flat Silicone suction cup with G1/4 male fit... (Full Description below)
| |
Item#: 083515S
Price: $34.56 ea.
|

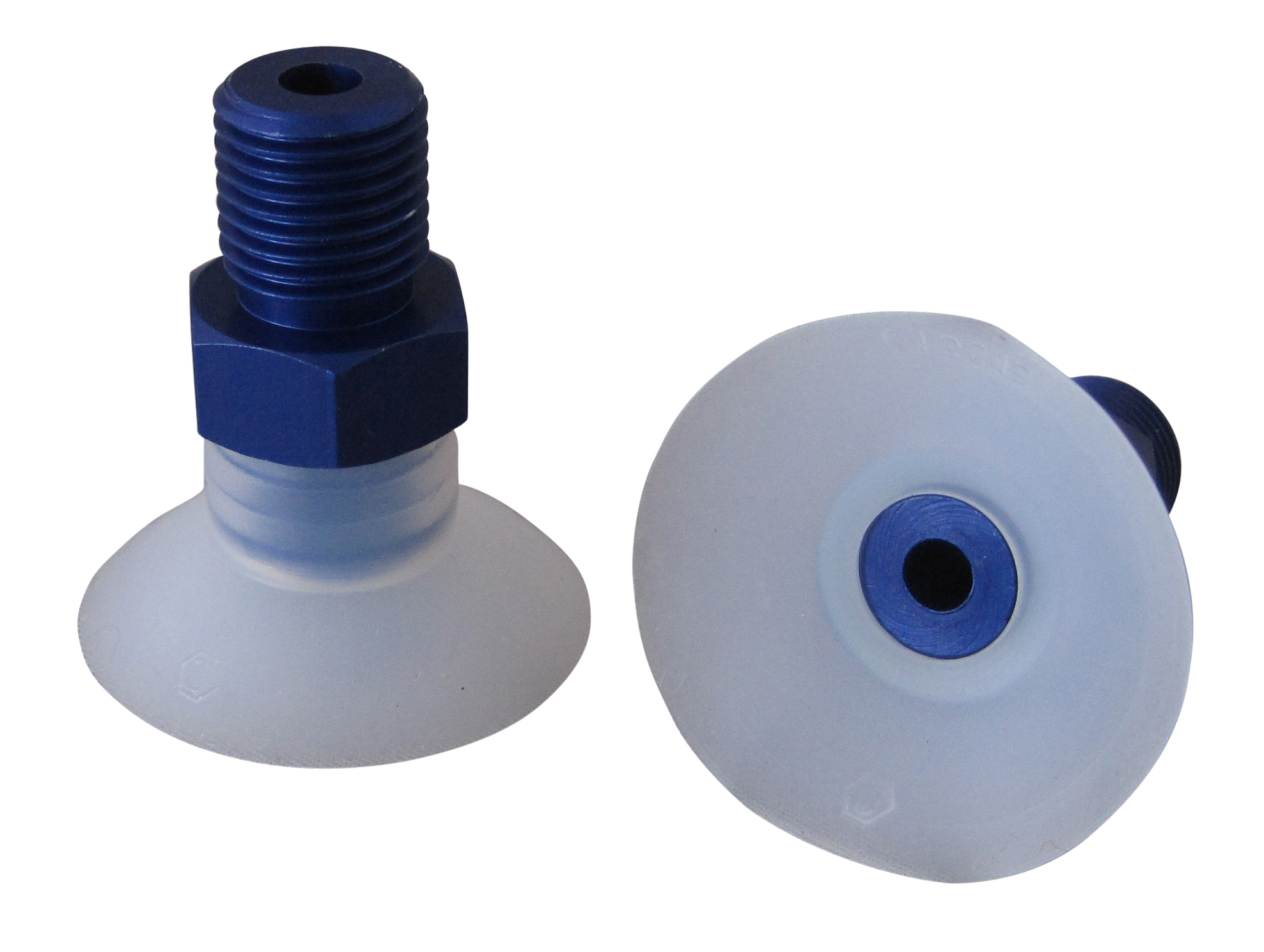

35mm flat Silicone suction cup with G1/4 male fitting
General Specifications
Style: Flat
Cleats: No
Material: Silicone
Thread Size: 1/4" male
Outside Diameter: 35.0mm
Weight(lbs): 0.0299
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 083515S
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.78 lbs. |
0.89 lbs. |
| 18"Hg |
5.36 lbs. |
2.68 lbs. |
| 27"Hg |
8.05 lbs. |
4.02 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-58 to 572 °F (-50 to 300 °C) |
Video of Product in Action
No Videos available for: 083515S
Related CAD files of Product
