Quantity:
Item: PF30-SIR-G18M-LP - 30mm flat cup with cleats, Silicone, with G1/8 ma... (Full Description below)
|
Item#: PF30-SIR-G18M-LP Price: $10.62 ea.
|

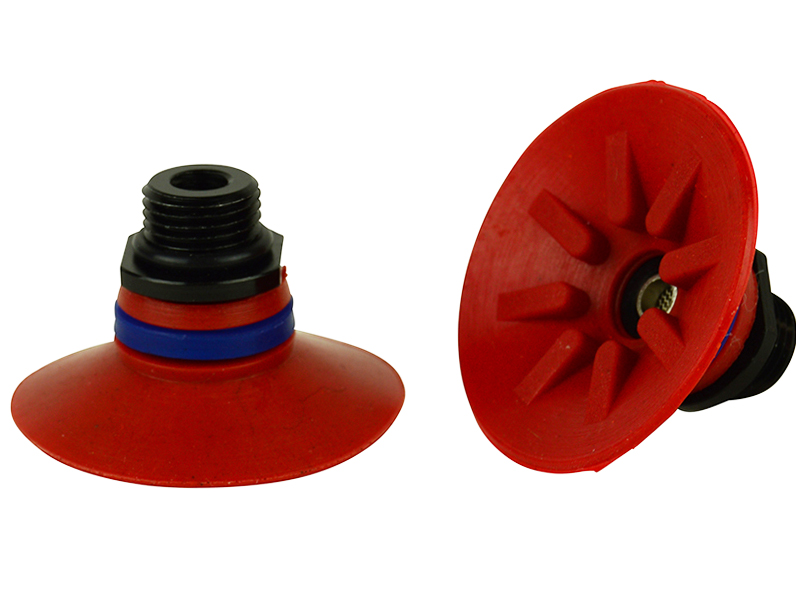

30mm flat cup with cleats, Silicone, with G1/8 male / M5 female fitting with screen
General Specifications
Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/8" male Outside Diameter: 30.0mm Weight(lbs): .0079 Color: Red Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF30-SIR-G18M-LP
Level of Vacuum (inHg) |
Horizontal |
Vertical |
6"Hg |
1.31 lbs. |
0.65 lbs. |
18"Hg |
3.94 lbs. |
1.97 lbs. |
27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
Recommended replacement for: F30-2.20.02AD |
|
|
|
Material Specifications
Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
Click Video for Product: PF30-SIR-G18M-LP
No CAD files available for this Product

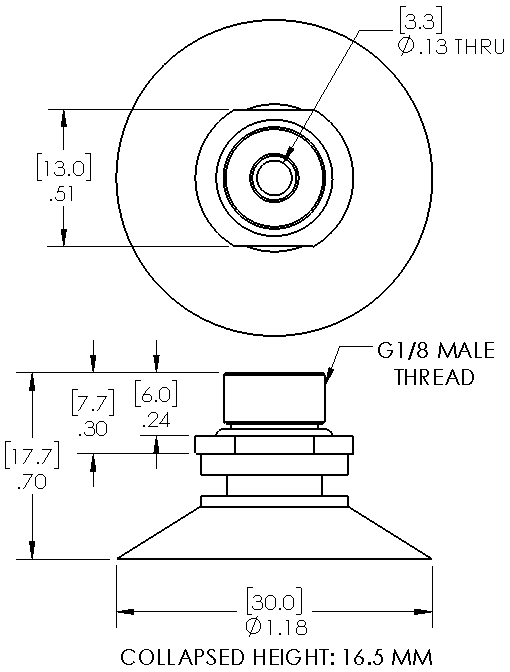

Dimensional drawing for Item: PF30-SIR-G18M-LP
Click on the image to enlarge
Parts and accessories for Suction Cup: PF30-SIR-G18M-LP
Fitting Image for 401.017 |
General Specifications
Material: Aluminum
Weight: .0040(lbs)
Dimensions: G1/8" male
Description: G1/8 male / M5 female low profile fitting with screen for 20/30 series suction cups (02AF)
*This fitting is included with the cup(PF30-SIR-G18M-LP)
|
Dimensional Fitting Drawing for 401.017 |
|
---|
