Item: 10FF.064.001.15 - 64mm foam vacuum cup with G1/4 female fitting. O... (Full Description below)
| |
Item#: 10FF.064.001.15
Price: $65.53 ea.
|
64mm foam vacuum cup with G1/4 female fitting. Orange Geranium foam
General Specifications
Style: Foam
Cleats: No
Material: Geranium Foam
Thread Size: 1/4" female
Outside Diameter: 64.0mm
Weight(lbs): .1815
Color: Orange
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 10FF.064.001.15
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
5.98 lbs. |
2.99 lbs. |
| 18"Hg |
17.95 lbs. |
8.97 lbs. |
| 27"Hg |
26.92 lbs. |
13.46 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
Video of Product in Action
Click Video for Product: 10FF.064.001.15
No CAD files available for this Product

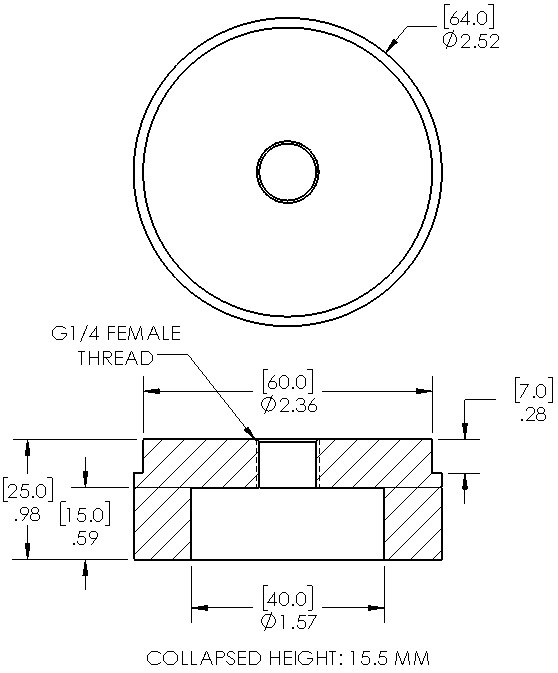

Dimensional drawing for Item: 10FF.064.001.15
Click on the image to enlarge
Parts and accessories for Suction Cup: 10FF.064.001.15
No parts or accessories related to this item were found.
