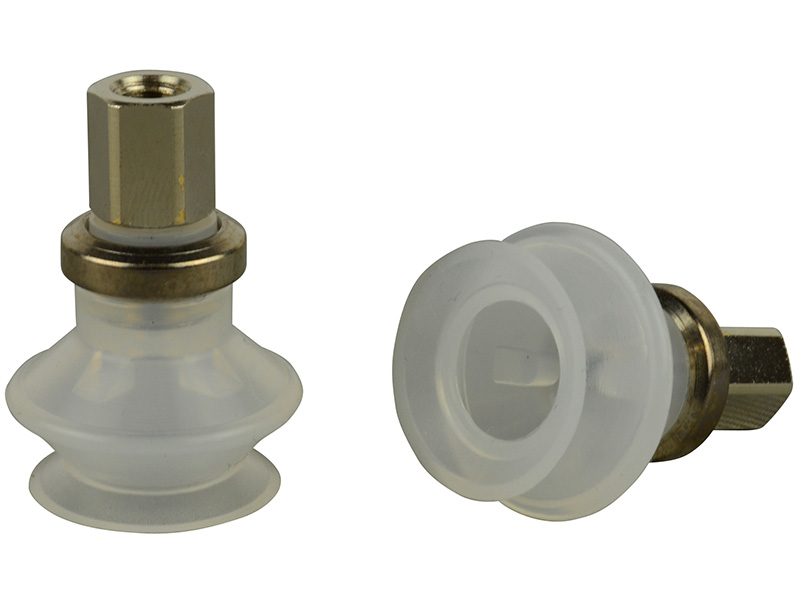

Home > Products > Suction Cups > V-ZPT16BS-M5F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: V-ZPT16BS-M5F - 18mm single bellows Silicone suction cup with M5 ... (Full Description below) Item#: V-ZPT16BS-M5F Price: $11.01 ea. 18mm single bellows Silicone suction cup with M5 female fitting General Specifications Style: Bellows Cleats: No Material: Silicone Thread Size: M5 female Bellows: 1.5 Outside Diameter: 18.0mm Weight(lbs): .0165 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item V-ZPT16BS-M5F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.47 lbs. 0.23 lbs. 18"Hg 1.41 lbs. 0.70 lbs. 27"Hg 2.12 lbs. 1.06 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: ZPT16BS-B5 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: V-ZPT16BS-M5F No CAD files available for this Product Dimensional drawing for Item: V-ZPT16BS-M5F                                Click on the image to enlarge Parts and accessories for Suction Cup: V-ZPT16BS-M5F                                Fitting Image for V-ZPT2-M5F Item#: V-ZPT2-M5F compatible with cup #V-ZPT16BS-M5F General Specifications Material: Aluminum Weight: .0085(lbs) Dimensions: M5 female Description: M5 female fitting for V-ZP 10-16mm cups *This fitting is included with the cup(V-ZPT16BS-M5F) Dimensional Fitting Drawing for V-ZPT2-M5F
