Item: V-ZPT10CS-M5 - 12mm flat Silicone suction cup with cleats and M5... (Full Description below)
| |
Item#: V-ZPT10CS-M5
Price: $8.58 ea.
|

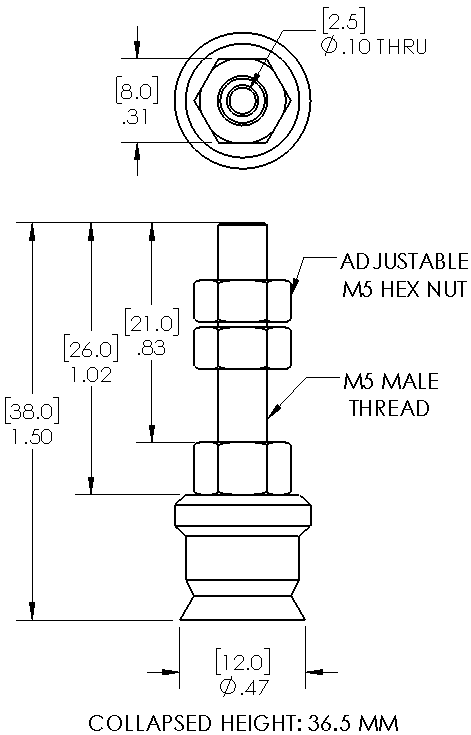

12mm flat Silicone suction cup with cleats and M5 male fitting
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: M5 male
Outside Diameter: 12.0mm
Weight(lbs): .0220
Color: Translucent
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item V-ZPT10CS-M5
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.21 lbs. |
0.10 lbs. |
| 18"Hg |
0.63 lbs. |
0.31 lbs. |
| 27"Hg |
0.94 lbs. |
0.47 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: ZPT10CS-A5 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
No Videos available for: V-ZPT10CS-M5
No CAD files available for this Product
