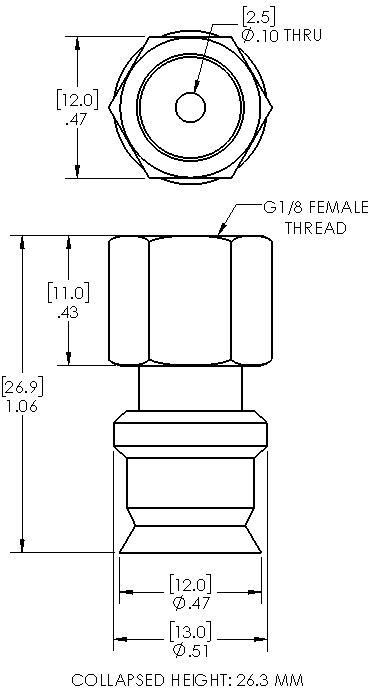

Home > Products > Suction Cups > V-ZPT10CN-G18F Product DetailsDimensional DrawingParts & Accessories Quantity: Item: V-ZPT10CN-G18F - 12mm flat NBR suction cup with cleats and G1/8 fe... (Full Description below) Item#: V-ZPT10CN-G18F Price: $8.37 ea. 12mm flat NBR suction cup with cleats and G1/8 female fitting General Specifications Style: Flat Cleats: Yes Material: NBR Thread Size: 1/8" female Outside Diameter: 12.0mm Weight(lbs): .0250 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item V-ZPT10CN-G18F    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.21 lbs. 0.10 lbs. 18"Hg 0.63 lbs. 0.31 lbs. 27"Hg 0.94 lbs. 0.47 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: V-ZPT10CN-G18F No CAD files available for this Product Dimensional drawing for Item: V-ZPT10CN-G18F                                Click on the image to enlarge Parts and accessories for Suction Cup: V-ZPT10CN-G18F                                Fitting Image for V-ZPT2-G18F Item#: V-ZPT2-G18F compatible with cup #V-ZPT10CN-G18F General Specifications Material: Aluminum Weight: .0195(lbs) Dimensions: G1/8" female Description: G1/8 female fitting for V-ZP 10-16mm cups *This fitting is included with the cup(V-ZPT10CN-G18F) Dimensional Fitting Drawing for V-ZPT2-G18F
