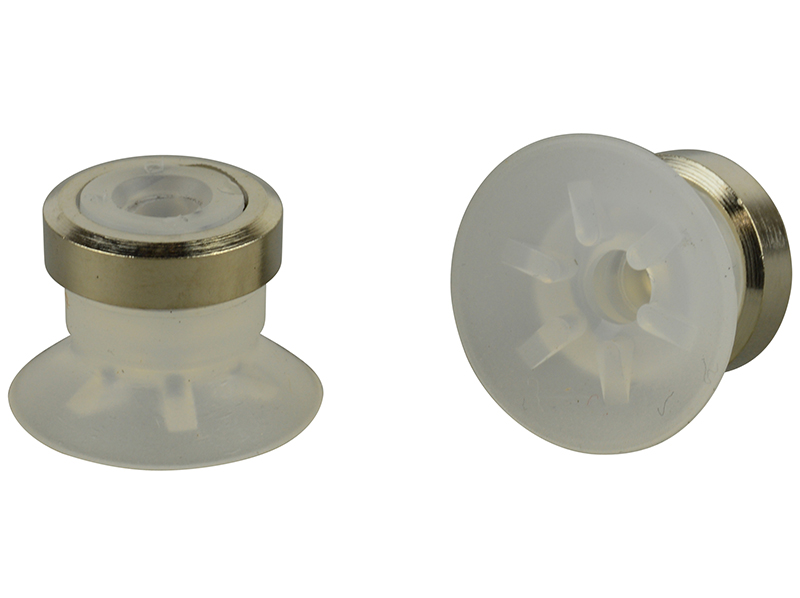

Home > Products > Suction Cups > V-ZP16CS Product DetailsDimensional DrawingParts & Accessories Quantity: Item: V-ZP16CS - 18mm flat Silicone suction cup with cleats and lo... (Full Description below) Item#: V-ZP16CS Price: $3.57 ea. 18mm flat Silicone suction cup with cleats and locking ring General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 18.0mm Weight(lbs): .0060 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item V-ZP16CS    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.47 lbs. 0.23 lbs. 18"Hg 1.41 lbs. 0.70 lbs. 27"Hg 2.12 lbs. 1.06 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: ZP16CS Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: V-ZP16CS No CAD files available for this Product Dimensional drawing for Item: V-ZP16CS                                Click on the image to enlarge Parts and accessories for Suction Cup: V-ZP16CS                                No parts or accessories related to this item were found.
