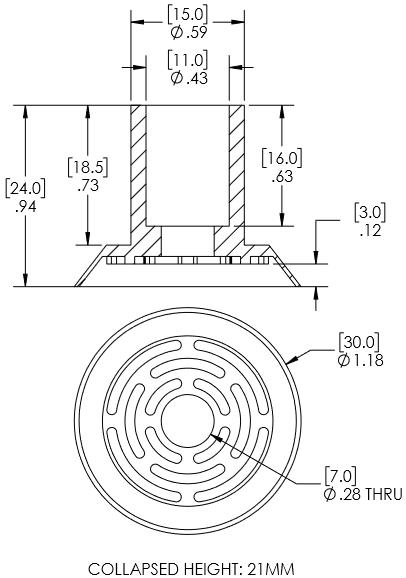

Home > Products > Suction Cups > 10F.030.004.02 Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.030.004.02 - 30mm flat FDA Silicone suction cup with cleats Item#: 10F.030.004.02 Price: $7.09 ea. 30mm flat FDA Silicone suction cup with cleats General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 30.0mm Weight(lbs): 0.00639 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.030.004.02    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.31 lbs. 0.65 lbs. 18"Hg 3.94 lbs. 1.97 lbs. 27"Hg 5.91 lbs. 2.95 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: 013024S, 10.030.102.02/40, 10.030.102.02, KPS-6-S, KPS-6-WS, KPS-6-WS(FDA), SGP 30 SI-50 N033 , SGP30 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -58 to 572 °F (-50 to 300 °C) Video of Product in Action No Videos available for: 10F.030.004.02 Related CAD files of Product Dimensional drawing for Item: 10F.030.004.02                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.030.004.02                                No parts or accessories related to this item were found.
