Item#: PSB110-NBR-G12F
Price: $59.63 ea.
|

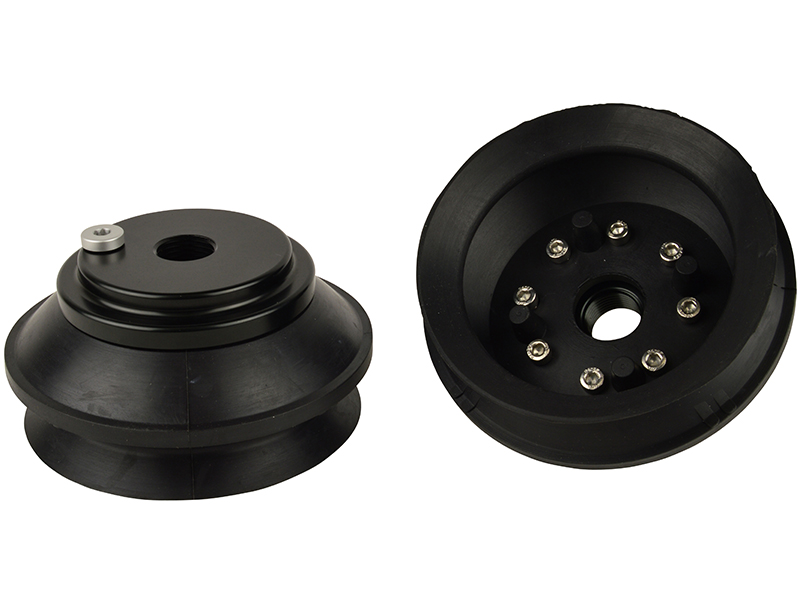

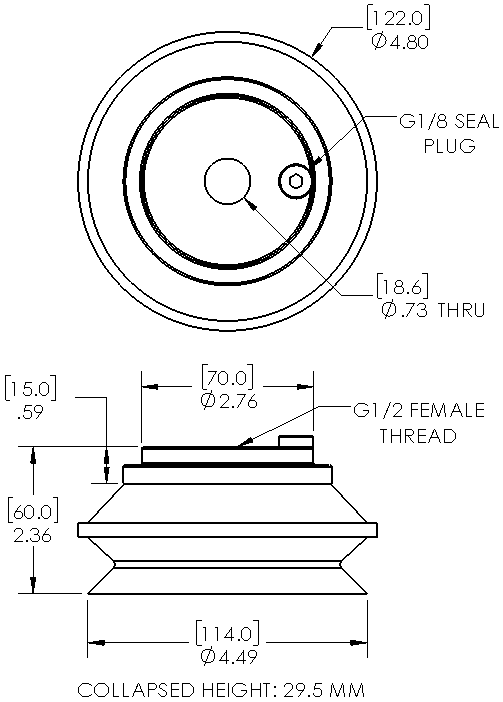

110mm single bellows NBR suction cup with washer and G1/2 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 1/2" female
Bellows: 1.5
Outside Diameter: 110.0mm
Weight(lbs): .4750
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PSB110-NBR-G12F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
17.67 lbs. |
8.83 lbs. |
| 18"Hg |
53.02 lbs. |
26.51 lbs. |
| 27"Hg |
79.54 lbs. |
39.77 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: VB110-N-12F, VB110-N-12F, B110-NEO/FIT, A-3150030P, 31.50.030P, B110.30.11UA, I-VCR-B110P-N-11-12F-S, 211.110.007.01 |
|
|
|
