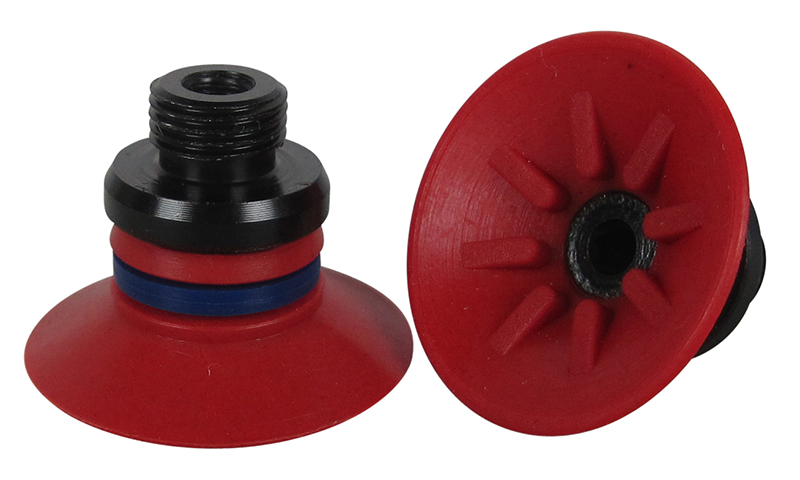

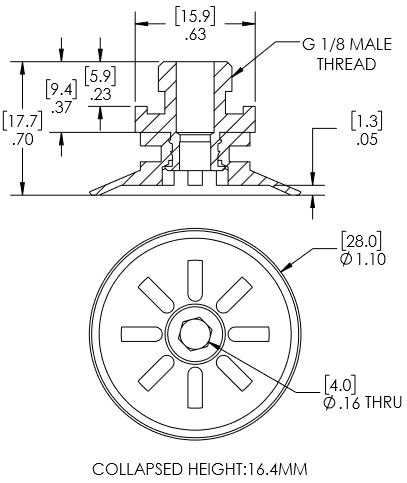

Home > Products > Suction Cups > PF25-SIR-G18M Product DetailsDimensional DrawingParts & Accessories Quantity: Item: PF25-SIR-G18M - 28mm flat Silicone suction cup with G1/8 male fit... (Full Description below) Item#: PF25-SIR-G18M Price: $10.88 ea. 28mm flat Silicone suction cup with G1/8 male fitting General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: 1/8" male Outside Diameter: 28.0mm Weight(lbs): 0.0095 Color: Red Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item PF25-SIR-G18M    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.14 lbs. 0.57 lbs. 18"Hg 3.43 lbs. 1.71 lbs. 27"Hg 5.15 lbs. 2.57 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: F25.20.02CD, 0110335, VF25-S-M518MF, VF25-S-M518MF Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: PF25-SIR-G18M Related CAD files of Product Dimensional drawing for Item: PF25-SIR-G18M                                Click on the image to enlarge Parts and accessories for Suction Cup: PF25-SIR-G18M                                Fitting Image for 401.003 Item#: 401.003 compatible with cup #PF25-SIR-G18M General Specifications Material: Aluminum Weight: .0060(lbs) Dimensions: G1/8" male Description: G1/8 Male flange/barb fitting, with M5 female, o-ring *This fitting is included with the cup(PF25-SIR-G18M) Dimensional Fitting Drawing for 401.003 Fitting Image for 401.011 Item#: 401.011 compatible with cup #PF25-SIR-G18M General Specifications Material: Aluminum Weight: .0055(lbs) Dimensions: G1/8" male Description: G1/8 male fitting with screen for P series 20-30 Dimensional Fitting Drawing for 401.011 Fitting Image for 401.017 Item#: 401.017 compatible with cup #PF25-SIR-G18M General Specifications Material: Aluminum Weight: .0040(lbs) Dimensions: G1/8" male Description: G1/8 male / M5 female low profile fitting with screen for 20/30 series suction cups (02AF) Dimensional Fitting Drawing for 401.017
