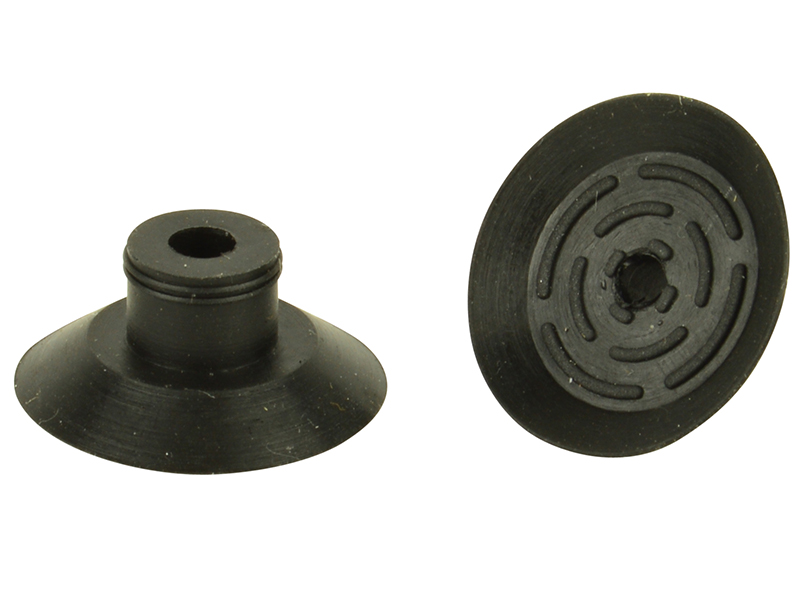

Home > Products > Suction Cups > 10F.026.001.02A Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 10F.026.001.02A - 26mm flat anti-static silicone vacuum cup with cl... (Full Description below) Item#: 10F.026.001.02A Price: $10.85 ea. 26mm flat anti-static silicone vacuum cup with cleats General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 26.0mm Weight(lbs): .0022 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 10F.026.001.02A    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.98 lbs. 0.49 lbs. 18"Hg 2.96 lbs. 1.48 lbs. 27"Hg 4.44 lbs. 2.22 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: 10.026.032.02A Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: 10F.026.001.02A No CAD files available for this Product Dimensional drawing for Item: 10F.026.001.02A                                Click on the image to enlarge Parts and accessories for Suction Cup: 10F.026.001.02A                                No parts or accessories related to this item were found.
