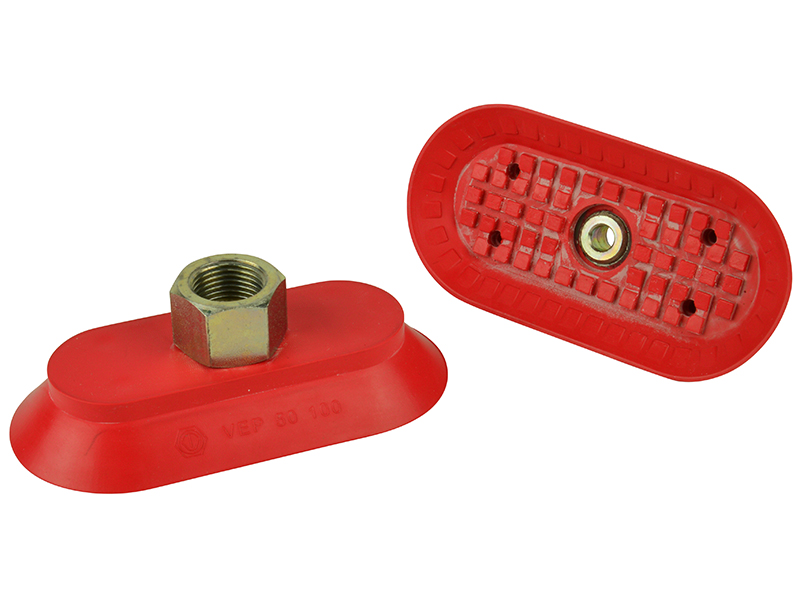

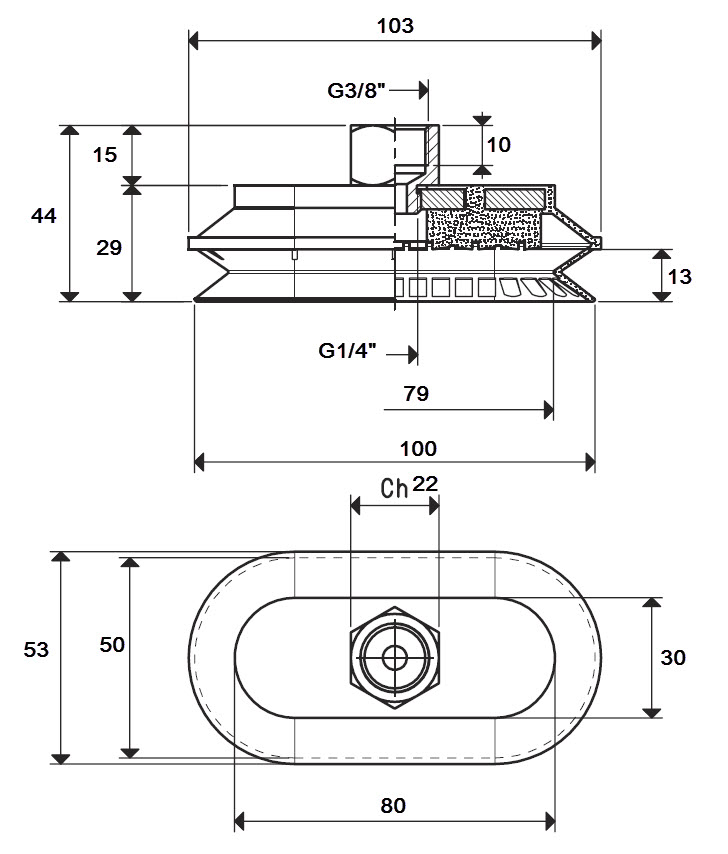

Home > Products > Suction Cups > VEP50100B Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VEP50100B - 50mm x 100mm flat oval suction cup with cleats, B... (Full Description below) Item#: VEP50100B Price: $132.21 ea. 50mm x 100mm flat oval suction cup with cleats, BENZ General Specifications Style: Oval Cleats: Yes Material: BENZ Thread Size: 3/8" female Outside Diameter1: 100.0mm Outside Diameter2: 50mm Weight(lbs): .2500 Color: Red Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item VEP50100B    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 4.86 lbs. 2.43 lbs. 18"Hg 21.91 lbs. 10.95 lbs. 27"Hg 32.86 lbs. 16.43 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range BENZ Excellent Excellent Good -40 to 338 °F (-40 to 170 °C) Video of Product in Action No Videos available for: VEP50100B Related CAD files of Product Dimensional drawing for Item: VEP50100B                                Click on the image to enlarge Parts and accessories for Suction Cup: VEP50100B                                No parts or accessories related to this item were found.
