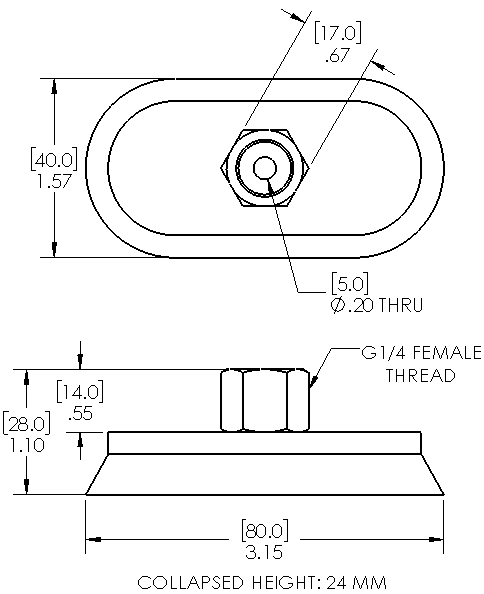

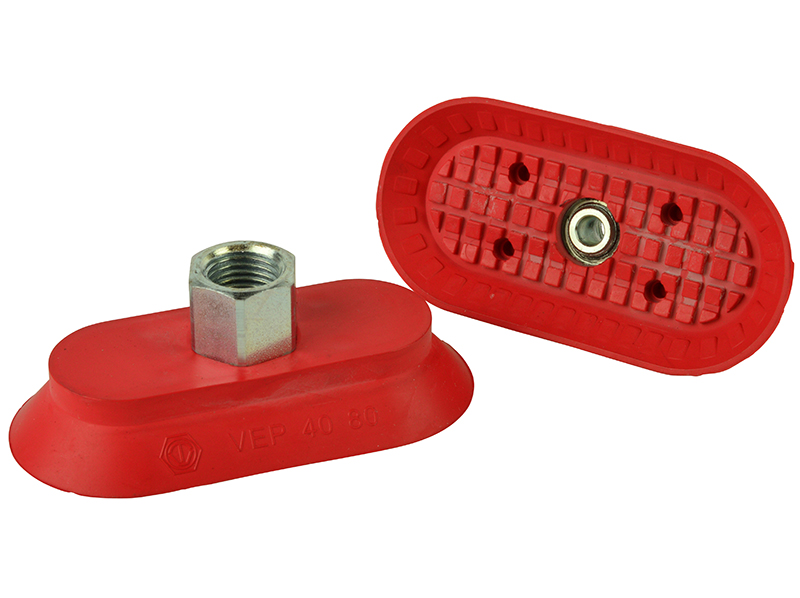

Home > Products > Suction Cups > VEP4080B Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VEP4080B - 40mm x 80mm flat oval suction cup with cleats, BE... (Full Description below) Item#: VEP4080B Price: $120.53 ea. 40mm x 80mm flat oval suction cup with cleats, BENZ General Specifications Style: Oval Cleats: Yes Material: BENZ Thread Size: 1/4" female Outside Diameter1: 80.0mm Outside Diameter2: 40mm Weight(lbs): .1510 Color: Red Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item VEP4080B    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 3.11 lbs. 1.55 lbs. 18"Hg 14.02 lbs. 7.01 lbs. 27"Hg 21.03 lbs. 10.51 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range BENZ Excellent Excellent Good -40 to 338 °F (-40 to 170 °C) Video of Product in Action No Videos available for: VEP4080B No CAD files available for this Product Dimensional drawing for Item: VEP4080B                                Click on the image to enlarge Parts and accessories for Suction Cup: VEP4080B                                No parts or accessories related to this item were found.
