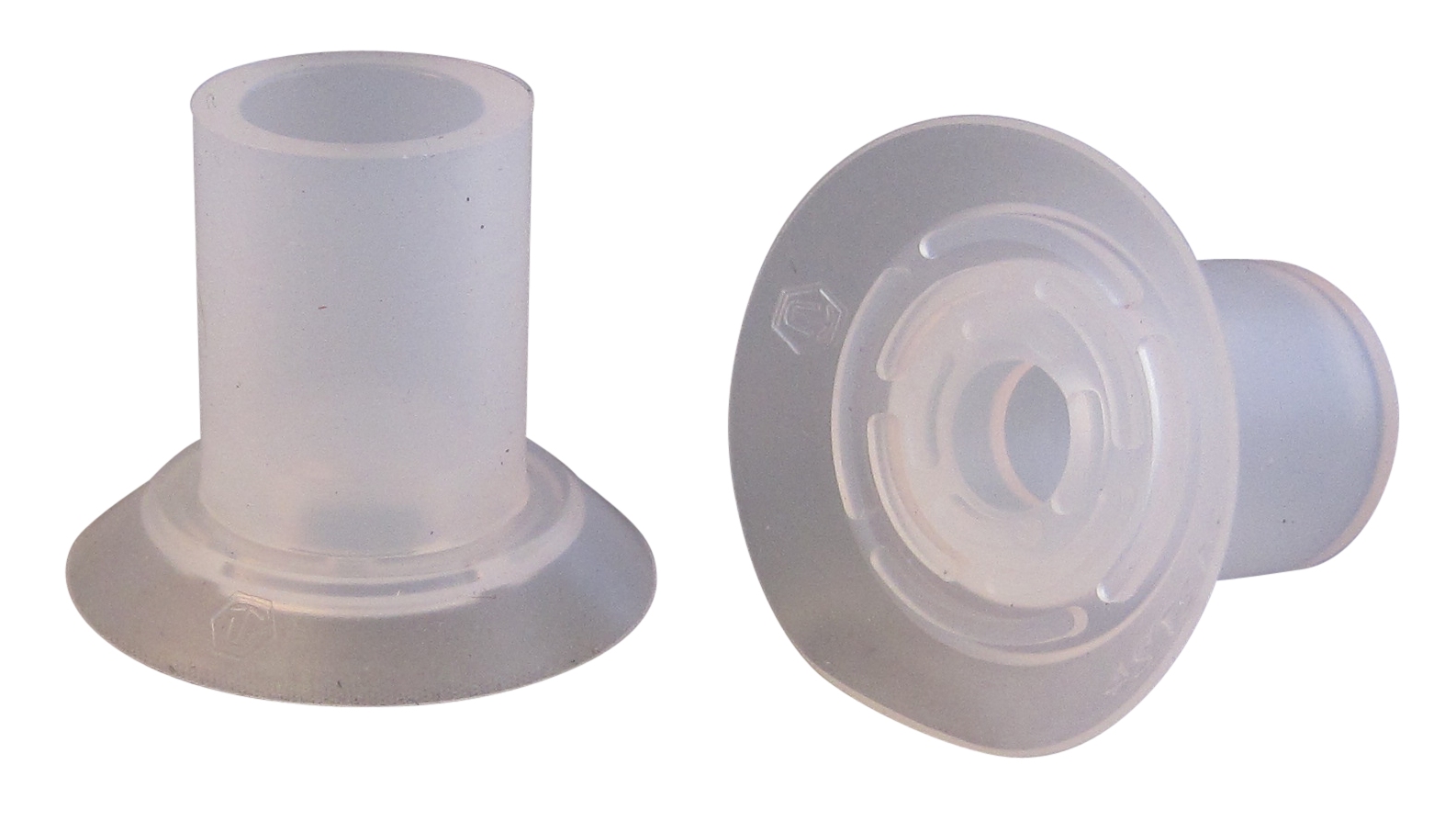

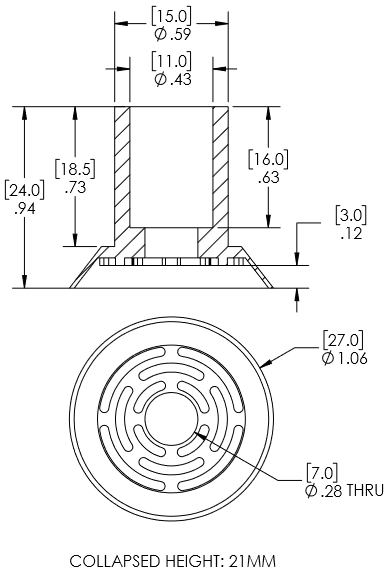

Home > Products > Suction Cups > 012724S Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 012724S - 27mm flat Silicone suction cup with cleats Item#: 012724S Price: $11.25 ea. 27mm flat Silicone suction cup with cleats General Specifications Style: Flat Cleats: Yes Material: Silicone Thread Size: None Outside Diameter: 27.0mm Weight(lbs): 0.00617 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 012724S    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 1.06 lbs. 0.53 lbs. 18"Hg 3.19 lbs. 1.59 lbs. 27"Hg 4.79 lbs. 2.39 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -58 to 572 °F (-50 to 300 °C) Video of Product in Action No Videos available for: 012724S Related CAD files of Product Dimensional drawing for Item: 012724S                                Click on the image to enlarge Parts and accessories for Suction Cup: 012724S                                No parts or accessories related to this item were found.
