Quantity:

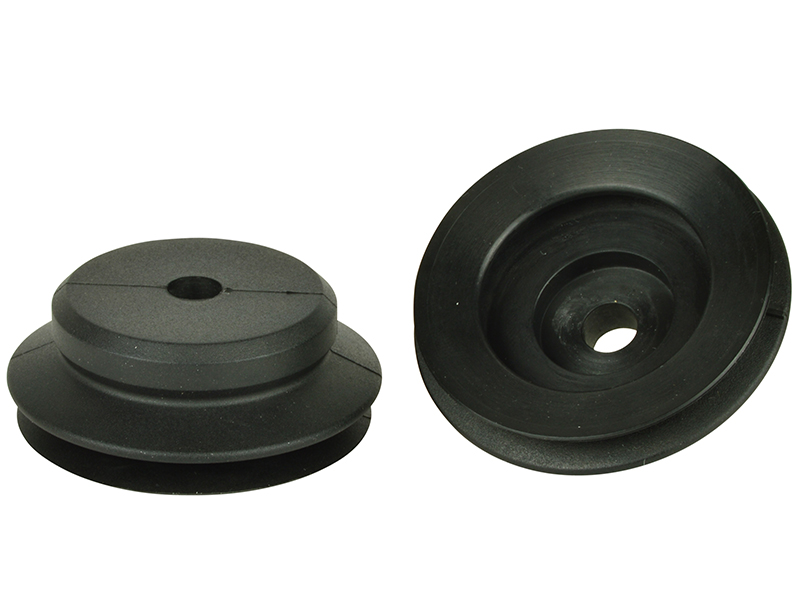

Item: PB50-NBR - 50mm short bellows cup, Nitrile
| |
Item#: PB50-NBR
Price: $6.37 ea.
|
50mm short bellows cup, Nitrile
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: None
Bellows: 1.5
Outside Diameter: 50.0mm
Weight(lbs): .0485
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PB50-NBR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
3.65 lbs. |
1.82 lbs. |
| 18"Hg |
10.95 lbs. |
5.47 lbs. |
| 27"Hg |
16.43 lbs. |
8.21 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: PJG-50-NBR, C-BS1.5-50-NBR, 210.050.221.01, VC-407 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action  No Videos available for: PB50-NBR Related CAD files of Product

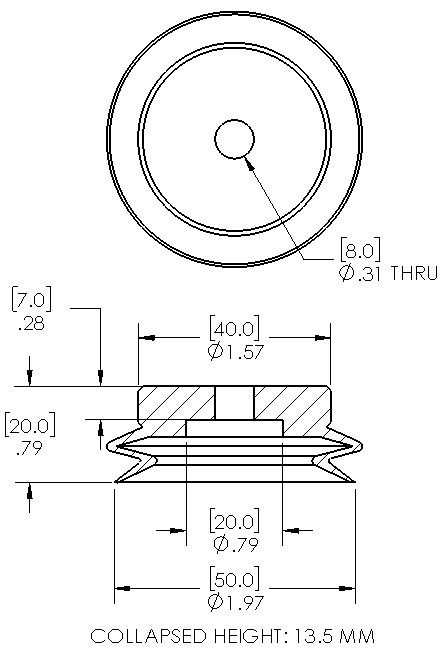

Dimensional drawing for Item: PB50-NBR
Click on the image to enlarge
Parts and accessories for Suction Cup: PB50-NBR
Fitting Image for 130.020 |
General Specifications
Material: Aluminum
Weight: 0.0120(lbs)
Dimensions: G1/8" male
Price: $4.11 each
Description: G1/8 female fitting for PFG, PJG 50 series
Add to Cart
|
Dimensional Fitting Drawing for 130.020 |
|
|---|
Fitting Image for 130.012 |
General Specifications
Material: Aluminum
Weight: .0105(lbs)
Dimensions: G1/8" male
Price: $4.32 each
Description: G1/8 male flange fitting
Add to Cart
|

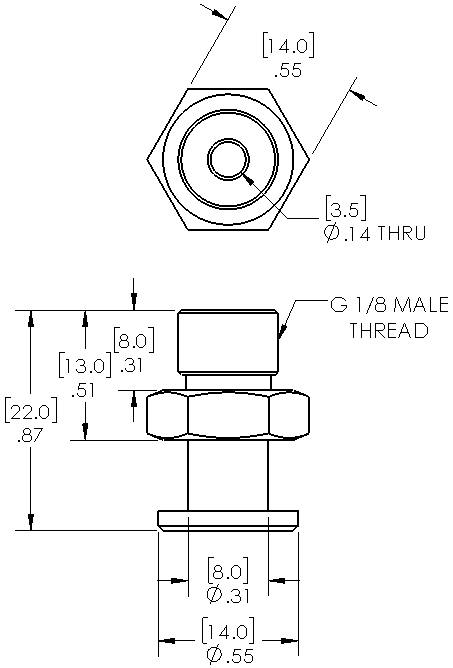

Dimensional Fitting Drawing for 130.012 |
|
|---|
|
