Quantity:
Item: PF30-SIR-G18M-DF - 30mm flat Silicone suction cups with cleats and G1/8 ... (Full Description below)
| |
Item#: PF30-SIR-G18M-DF
Price: $17.02 ea.
|
30mm flat Silicone suction cups with cleats and G1/8 male/M5 female fitting, with dual flow control valve (02DD)
General Specifications
Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 30.0mm
Weight(lbs): .0079
Color: Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item PF30-SIR-G18M-DF
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.31 lbs. |
0.65 lbs. |
| 18"Hg |
3.94 lbs. |
1.97 lbs. |
| 27"Hg |
5.91 lbs. |
2.95 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: F30-2.20.02DB |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Silicone |
Good |
Good |
Excellent |
-94 to 392 °F (-70 to 200 °C) |
Video of Product in Action
Click Video for Product: PF30-SIR-G18M-DF

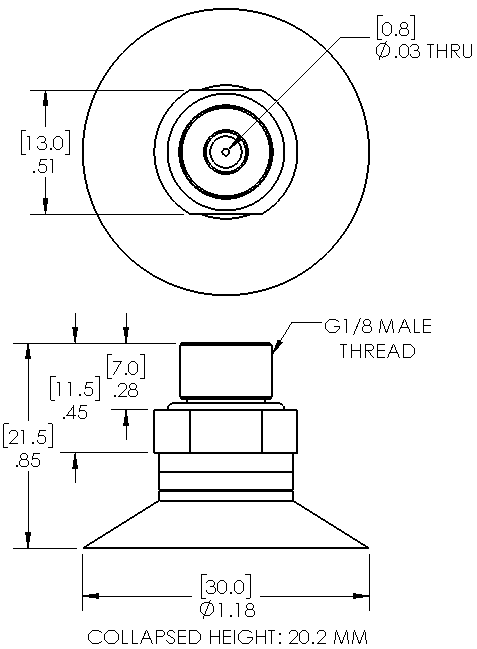

Dimensional drawing for Item: PF30-SIR-G18M-DF
Click on the image to enlarge
Parts and accessories for Vacuum Generator: PF30-SIR-G18M-DF
Fitting Image for SCF20/30-G18M/M5F-DF |
General Specifications
Material: Aluminum
Weight: .0265(lbs)
Dimensions: G1/8" male
Description: Fitting G1/8 male/M5 female, with dual flow control valve (02DD)
*This fitting is included with the cup(PF30-SIR-G18M-DF)
|
Dimensional Fitting Drawing for SCF20/30-G18M/M5F-DF |
|
|---|
