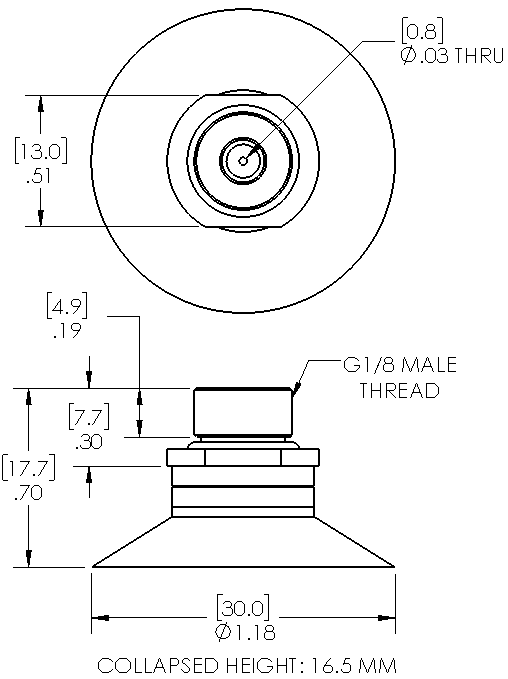

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: PF30-SIR-G18M-LPDF - 30mm flat Silicone suction cups with cleats and G1/8 ... (Full Description below)
PF30-SIR-G18M-LPDF


Item#: PF30-SIR-G18M-LPDF
Price: $16.95 ea.





30mm flat Silicone suction cups with cleats and G1/8 male/M5 female fitting, with dual flow control valve (02DB). Low profile

General Specifications

Style: Flat
Cleats: Yes
Material: Silicone
Thread Size: 1/8" male
Outside Diameter: 30.0mm
Weight(lbs): .0079
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item PF30-SIR-G18M-LPDF



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 1.31 lbs. 0.65 lbs.
18"Hg 3.94 lbs. 1.97 lbs.
27"Hg 5.91 lbs. 2.95 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: F30-2.20.02DD


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)
