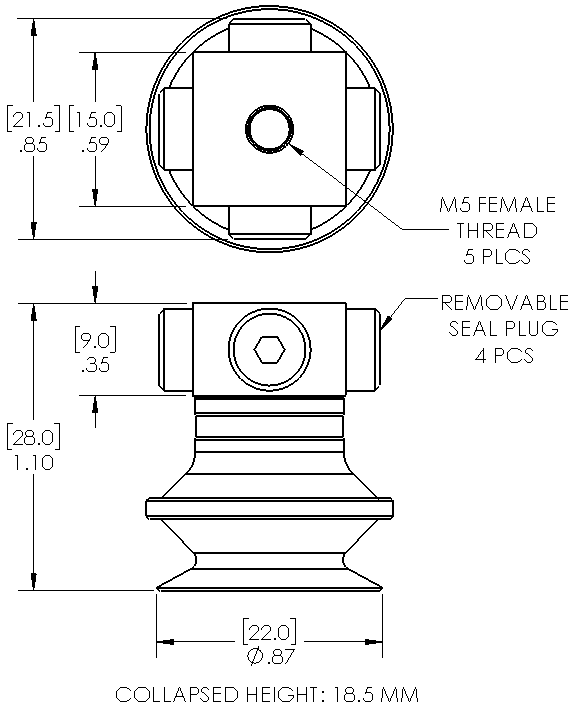

Product DetailsDimensional DrawingParts & Accessories
Quantity:

Item: PSB20-SIR-M5FX5 - 21mm single bellows silicone suction cup with 5 x M5 ... (Full Description below)
PSB20-SIR-M5FX5


Item#: PSB20-SIR-M5FX5
Price: $19.81 ea.





21mm single bellows silicone suction cup with 5 x M5 female fitting

General Specifications

Style: Bellows
Cleats: No
Material: Silicone
Thread Size: M5 female
Bellows: 1.5
Outside Diameter: 21.0mm
Weight(lbs): .0287
Color: Red
Lifting Capacity: See Chart
                                                                                                                                 [X] Close

Lifting Capacity for Item PSB20-SIR-M5FX5



Level of Vacuum (inHg) Horizontal Vertical
6"Hg 0.64 lbs. 0.32 lbs.
18"Hg 1.93 lbs. 0.96 lbs.
27"Hg 2.89 lbs. 1.44 lbs.


***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.

Includes fitting?: YES

img  Recommended replacement for: B20.20.02AE, S.B20S50.M5M5F.00, 0101175


Material Specifications

Material name Wear Resistance Oil Weather & Ozone Temperature Range
Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C)

Video of Product in Action
