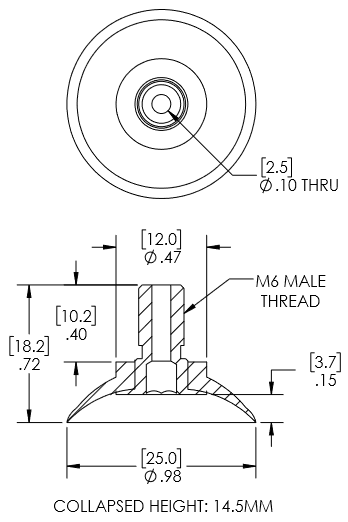

Home > Products > Suction Cups > 082510A Product DetailsDimensional DrawingParts & Accessories Quantity: Item: 082510A - 25mm flat NBR suction cup with M6 male fitting Item#: 082510A Price: $19.25 ea. 25mm flat NBR suction cup with M6 male fitting General Specifications Style: Flat Cleats: No Material: NBR Thread Size: M6 male Outside Diameter: 25.0mm Weight(lbs): 0.0224 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item 082510A    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.91 lbs. 0.45 lbs. 18"Hg 2.73 lbs. 1.36 lbs. 27"Hg 4.10 lbs. 2.05 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: 082510A Related CAD files of Product Dimensional drawing for Item: 082510A                                Click on the image to enlarge Parts and accessories for Suction Cup: 082510A                                No parts or accessories related to this item were found.
