Item: SB26-NR-G14F - 27mm single bellows Natural Rubber suction cup wi... (Full Description below)
| |
Item#: SB26-NR-G14F
Price: $8.52 ea.
|

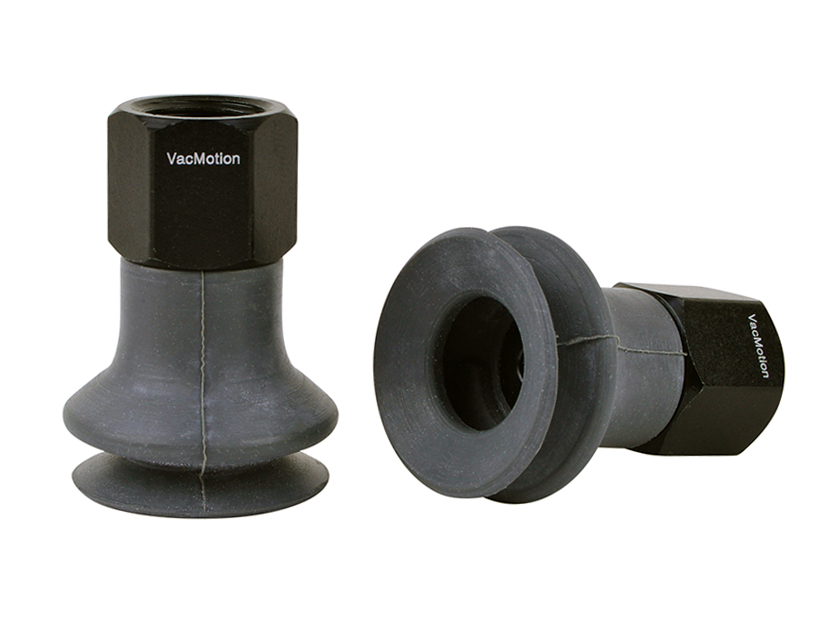

27mm single bellows Natural Rubber suction cup with G1/4 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: Natural Rubber
Thread Size: 1/4" female
Bellows: 1.5
Outside Diameter: 27.0mm
Weight(lbs): .0265
Color: Black(NR)
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB26-NR-G14F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
1.06 lbs. |
0.53 lbs. |
| 18"Hg |
3.19 lbs. |
1.59 lbs. |
| 27"Hg |
4.79 lbs. |
2.39 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Natural Rubber |
Good |
Poor |
Poor |
-40 to 176 °F (-40 to 80 °C) |
