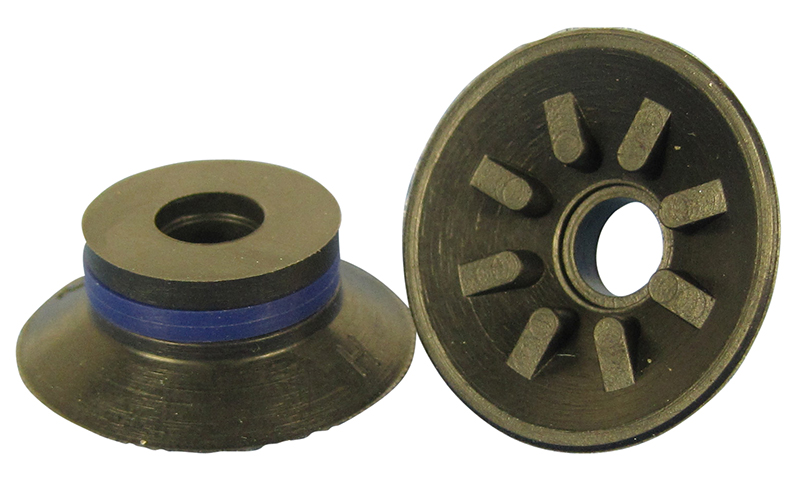

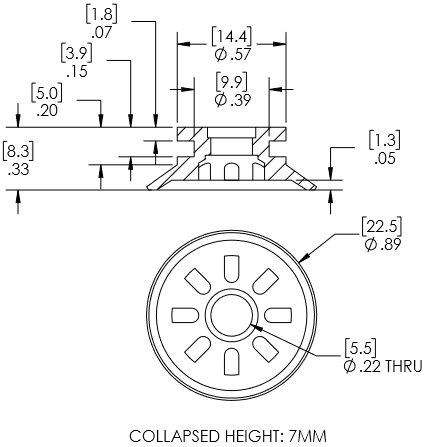

Home > Products > Suction Cups > PF20-NBR Product DetailsDimensional DrawingParts & Accessories Quantity: Item: PF20-NBR - 22.5mm flat NBR suction cup with cleats Item#: PF20-NBR Price: $3.75 ea. 22.5mm flat NBR suction cup with cleats General Specifications Style: Flat Cleats: Yes Material: NBR Thread Size: None Outside Diameter: 22.5mm Weight(lbs): 0.0022 Color: Black Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item PF20-NBR    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 0.73 lbs. 0.36 lbs. 18"Hg 2.21 lbs. 1.10 lbs. 27"Hg 3.32 lbs. 1.66 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: NO   Recommended replacement for: CPF20NBR, VF20-N, F20.10, VPF20NBR, PFG-F 20 CR-50, 10.01.01.11014 , F20-NEO, A-3150126, 0101129, 125.020.004.9, XP-F20N, GSV F20 10, 5125 , GSV FON 20R, 1123 , VFF20N, VCR-F20P-C, VCR-F20P-C, 10.022.005.01, S.F20CR50.XXX.00, S.F20CR50.XXX.00 Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range NBR Good Good Excellent -40 to 266 °F (-40 to +130 °C) Video of Product in Action No Videos available for: PF20-NBR Related CAD files of Product Dimensional drawing for Item: PF20-NBR                                Click on the image to enlarge Parts and accessories for Suction Cup: PF20-NBR                                Fitting Image for 401.003 Item#: 401.003 compatible with cup #PF20-NBR General Specifications Material: Aluminum Weight: .0060(lbs) Dimensions: G1/8" male Price: $4.38 each Description: G1/8 Male flange/barb fitting, with M5 female, o-ring Add to Cart Dimensional Fitting Drawing for 401.003 Fitting Image for 401.027 Item#: 401.027 compatible with cup #PF20-NBR General Specifications Material: Aluminum Weight: .0060(lbs) Dimensions: G1/8" female Price: $4.73 each Description: G1/8 female fitting with filter screen for P series 20-30 Add to Cart Dimensional Fitting Drawing for 401.027 Fitting Image for 401.011 Item#: 401.011 compatible with cup #PF20-NBR General Specifications Material: Aluminum Weight: .0055(lbs) Dimensions: G1/8" male Price: $4.38 each Description: G1/8 male fitting with screen for P series 20-30 Add to Cart Dimensional Fitting Drawing for 401.011 Fitting Image for 401.017 Item#: 401.017 compatible with cup #PF20-NBR General Specifications Material: Aluminum Weight: .0040(lbs) Dimensions: G1/8" male Price: $4.19 each Description: G1/8 male / M5 female low profile fitting with screen for 20/30 series suction cups (02AF) Add to Cart Dimensional Fitting Drawing for 401.017 Fitting Image for 401.037 Item#: 401.037 compatible with cup #PF20-NBR General Specifications Material: Aluminum Weight: .0055(lbs) Dimensions: 1/8" Male NPT Price: $4.38 each Description: 1/8 male NPT fitting with mesh filter (P-series 20/30) Add to Cart Dimensional Fitting Drawing for 401.037
