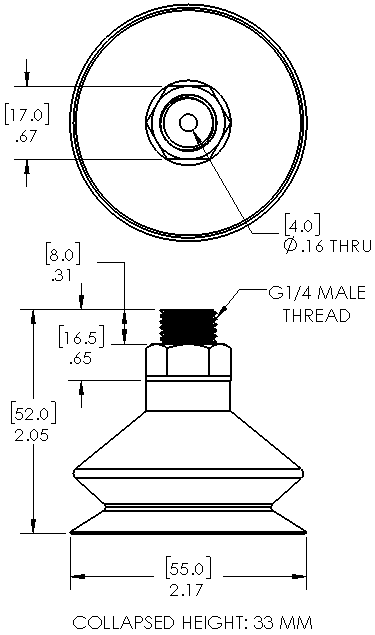

Home > Products > Suction Cups > VASB-55-SI-G14M Product DetailsDimensional DrawingParts & Accessories Quantity: Item: VASB-55-SI-G14M - 55mm single bellows silicone suction cup with G1/... (Full Description below) Item#: VASB-55-SI-G14M Price: $39.25 ea. 55mm single bellows silicone suction cup with G1/4 male vulcanized fitting General Specifications Style: Bellows Cleats: Yes Material: Silicone Thread Size: 1/4" male Bellows: 1.5 Outside Diameter: 55.0mm Weight(lbs): .0283 Color: Translucent Lifting Capacity: See Chart                                                                                                                           [X] Close Lifting Capacity for Item VASB-55-SI-G14M    Level of Vacuum (inHg) Horizontal Vertical 6"Hg 4.41 lbs. 2.20 lbs. 18"Hg 13.25 lbs. 6.62 lbs. 27"Hg 19.88 lbs. 9.94 lbs. ***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting. Includes fitting?: YES   Recommended replacement for: VASB-55-1/4-SI Material Specifications Material name Wear Resistance Oil Weather & Ozone Temperature Range Silicone Good Good Excellent -94 to 392 °F (-70 to 200 °C) Video of Product in Action No Videos available for: VASB-55-SI-G14M No CAD files available for this Product Dimensional drawing for Item: VASB-55-SI-G14M                                Click on the image to enlarge Parts and accessories for Suction Cup: VASB-55-SI-G14M                                No parts or accessories related to this item were found.
