Item: 082522N - 25mm deep suction cup with M8 male thread. Natur... (Full Description below)
| |
Item#: 082522N
Price: $18.34 ea.
|

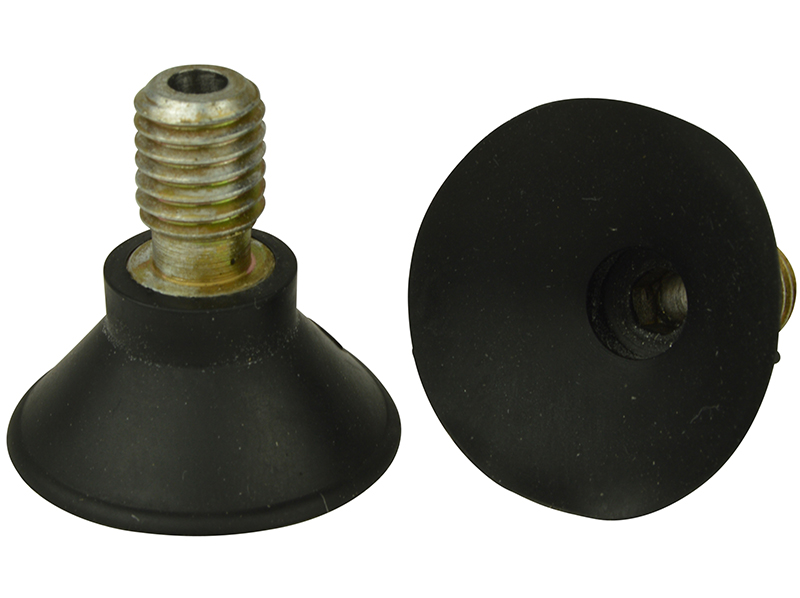

25mm deep suction cup with M8 male thread. Natural rubber
General Specifications
Style: Flat
Cleats: No
Material: Natural Rubber
Thread Size: M8 male
Outside Diameter: 25.0mm
Weight(lbs): .033
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item 082522N
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.91 lbs. |
0.45 lbs. |
| 18"Hg |
2.73 lbs. |
1.36 lbs. |
| 27"Hg |
4.10 lbs. |
2.05 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Natural Rubber |
Good |
Poor |
Poor |
-40 to 176 °F (-40 to 80 °C) |
Video of Product in Action
No Videos available for: 082522N
No CAD files available for this Product

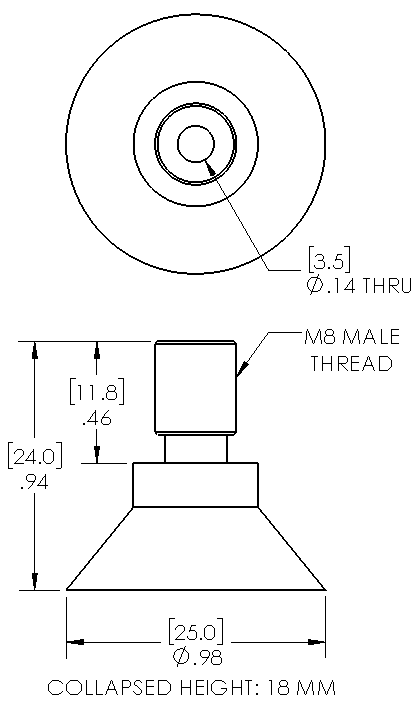

Dimensional drawing for Item: 082522N
Click on the image to enlarge
Parts and accessories for Suction Cup: 082522N
No parts or accessories related to this item were found.
