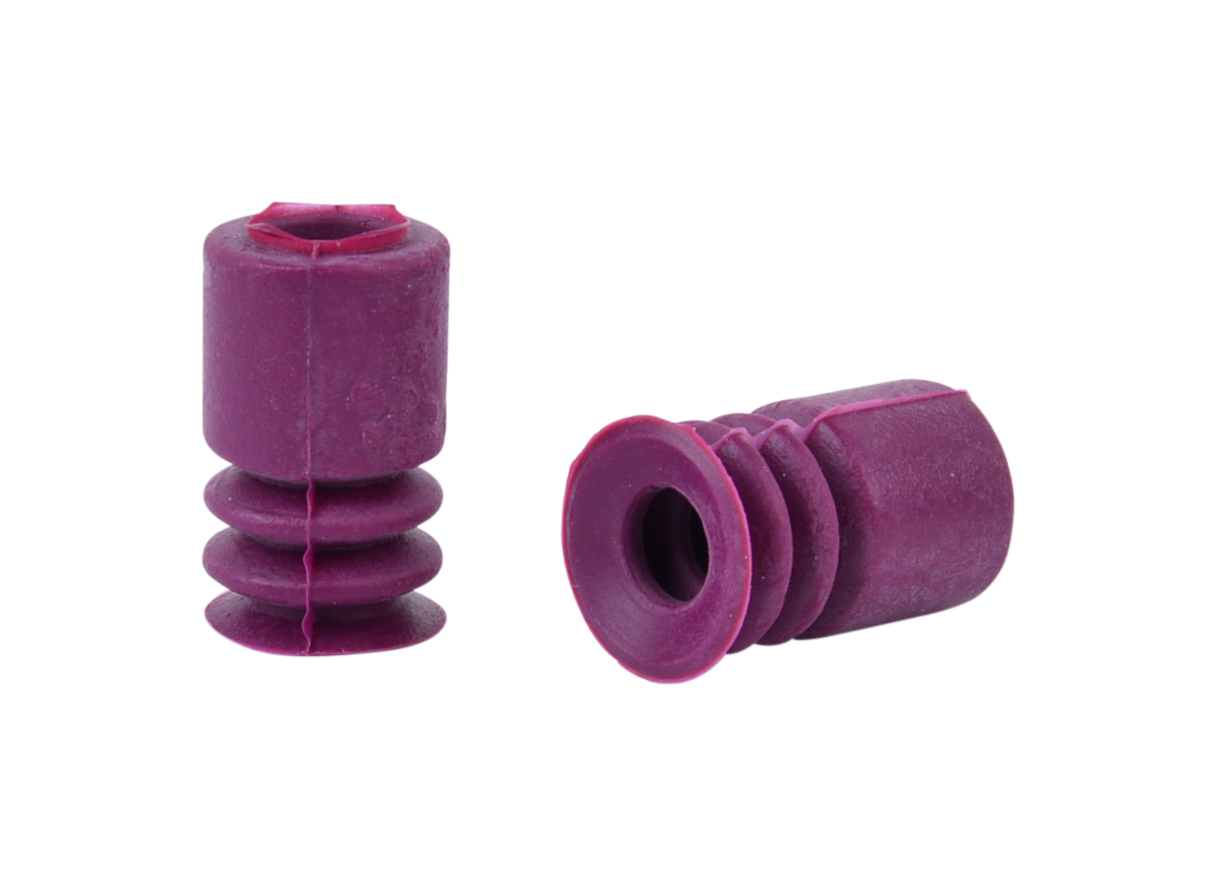

Item: MB10-HNBR - 9mm multiple bellows suction cup, H-NBR
| |
Item#: MB10-HNBR
Price: $8.95 ea.
|
9mm multiple bellows suction cup, H-NBR
General Specifications
Style: Bellows
Cleats: No
Material: HNBR
Thread Size: None
Bellows: 2.5

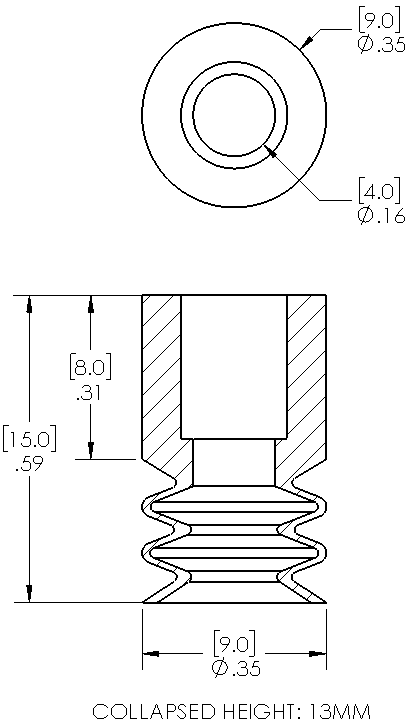

Outside Diameter: 9.0mm
Weight(lbs): .0013
Color: Dark Red
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB10-HNBR
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
0.11 lbs. |
0.05 lbs. |
| 18"Hg |
0.35 lbs. |
0.17 lbs. |
| 27"Hg |
0.53 lbs. |
0.26 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: NO
 Recommended replacement for: 21.009.002.14, 220.009.015.09 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| HNBR |
Good |
Excellent |
Good |
-22 to 320 °F (-40 to 160 °C) |
Video of Product in Action
No Videos available for: MB10-HNBR
No CAD files available for this Product
