Item: MB55P-3055-G38FS - 55mm 2.5 bellows dual durometer Polyurethane 30/5... (Full Description below)
| |
Item#: MB55P-3055-G38FS
Price: $32.13 ea.
|

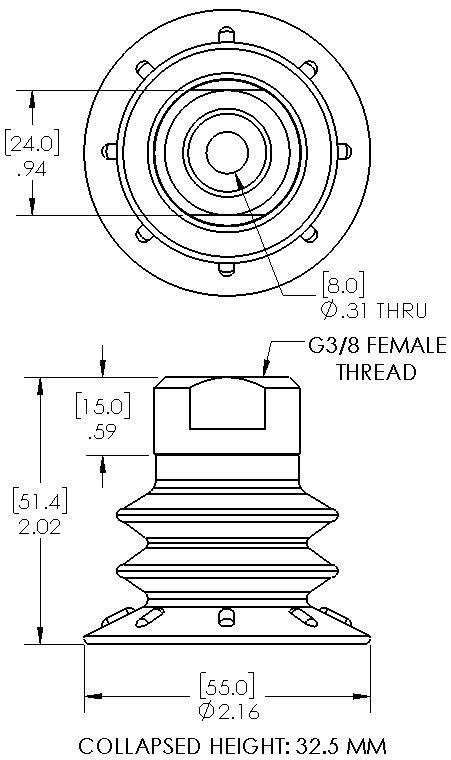

55mm 2.5 bellows dual durometer Polyurethane 30/55 Shore with G3/8 female fitting with screen
General Specifications
Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: 3/8" female
Bellows: 2.5
Outside Diameter: 55.0mm
Weight(lbs): .033
Color: Yellow
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB55P-3055-G38FS
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
4.41 lbs. |
2.20 lbs. |
| 18"Hg |
13.25 lbs. |
6.62 lbs. |
| 27"Hg |
19.88 lbs. |
9.94 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
No Videos available for: MB55P-3055-G38FS
No CAD files available for this Product
