Item: MB45P-3055-G18F - 45mm 2.5 bellows dual durometer Polyurethane 30/5... (Full Description below)
| |
Item#: MB45P-3055-G18F
Price: $26.33 ea.
|

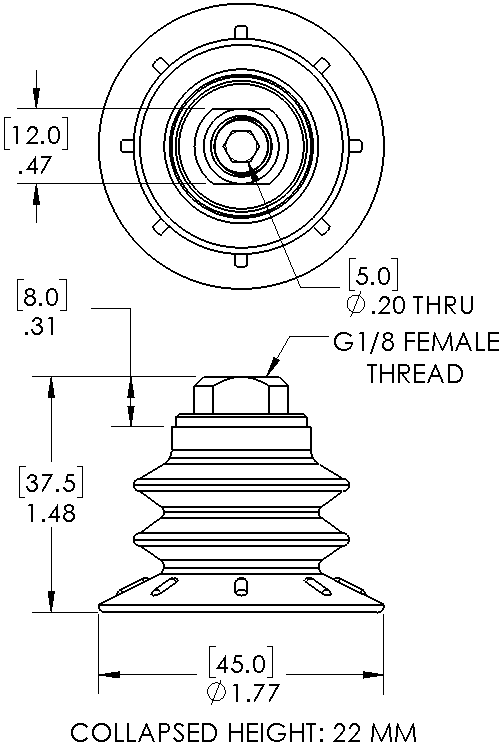

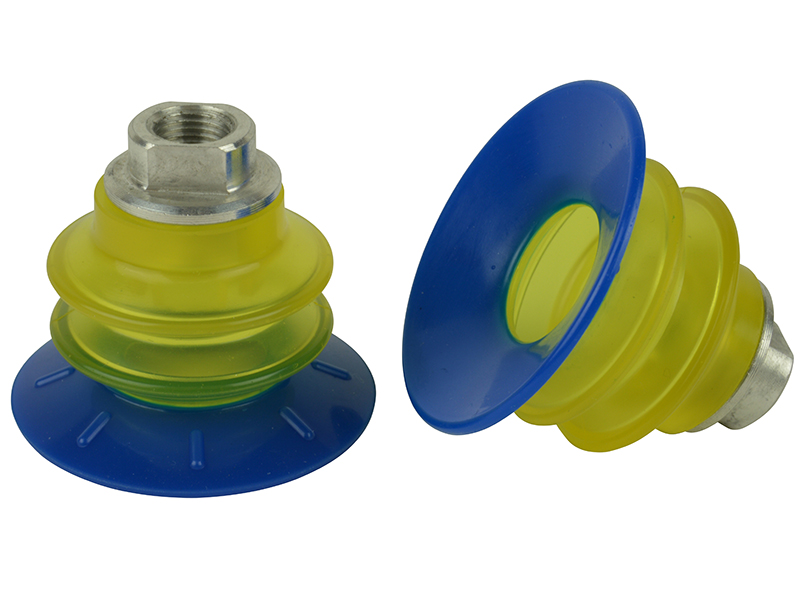

45mm 2.5 bellows dual durometer Polyurethane 30/55 Shore with G1/8 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: Polyurethane
Thread Size: 1/8" female
Bellows: 2.5
Outside Diameter: 45.0mm
Weight(lbs): .033
Color: Yellow
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item MB45P-3055-G18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
2.95 lbs. |
1.47 lbs. |
| 18"Hg |
8.87 lbs. |
4.43 lbs. |
| 27"Hg |
13.31 lbs. |
6.65 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| Polyurethane |
Excellent |
Excellent |
Excellent |
50 to 122 °F (10 to 50 °C) |
Video of Product in Action
No Videos available for: MB45P-3055-G18F
No CAD files available for this Product
