Item: SB53-NBR-18F - 53mm single bellows NBR suction cup with 1/8 fema... (Full Description below)
| |
Item#: SB53-NBR-18F
Price: $11.03 ea.
|

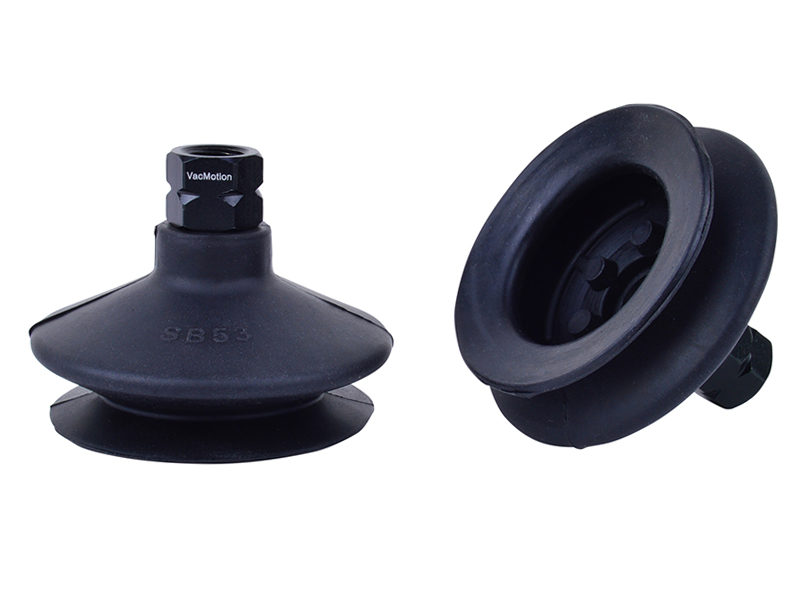

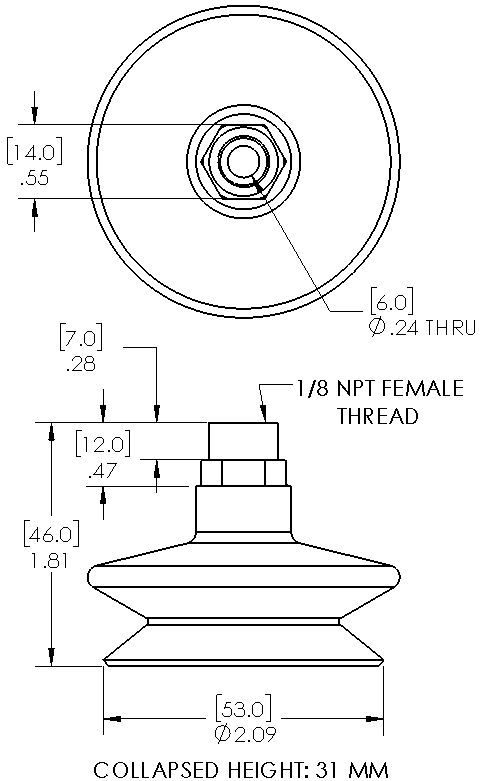

53mm single bellows NBR suction cup with 1/8 female fitting
General Specifications
Style: Bellows
Cleats: No
Material: NBR
Thread Size: 1/8" female
Bellows: 1.5
Outside Diameter: 53.0mm
Weight(lbs): 0.0525
Color: Black
Lifting Capacity: See Chart [X] CloseLifting Capacity for Item SB53-NBR-18F
| Level of Vacuum (inHg) |
Horizontal |
Vertical |
| 6"Hg |
4.10 lbs. |
2.05 lbs. |
| 18"Hg |
12.31 lbs. |
6.15 lbs. |
| 27"Hg |
18.46 lbs. |
9.23 lbs. |
***Disclaimer: Lifting capacity for handling a non-porous surface. Figures are theoretical and based on 80% of suction cup outside diameter with a 2:1 safety margin for horizontal lifting and a 4:1 safety margin for vertical lifting.
Includes fitting?: YES
 Recommended replacement for: B1.5-53-NBR-18F, 5427A825, 5427A647 |
|
|
|
Material Specifications
| Material name |
Wear Resistance |
Oil |
Weather & Ozone |
Temperature Range |
| NBR |
Good |
Good |
Excellent |
-40 to 266 °F (-40 to +130 °C) |
Video of Product in Action
No Videos available for: SB53-NBR-18F
No CAD files available for this Product
